The corrugated folder gluer machine is used in corrugated box plants to fold and glue carton blanks into finished cartons. It is used for corrugated box making from the 3-ply corrugator line and 5-ply corrugated board production line, and the 7-ply corrugated box making machine. This machine is also called a carton gluing machine. The carton blank enters the folder gluer machine after being processed by the Flexo Printer Slotter Die Cutter.
Our machine can also connect to a fully automatic bundling machine and an automatic stacker. This creates a continuous process from gluing to bundling and stacking.
As a corrugated box machinery supplier, AGICO PAPER provides fully automatic and semi-automatic folder gluer machines for different production needs.
If your corrugated box factory has a high production volume and needs continuous production, the auto folder gluer machine is a good choice. For smaller production volumes or frequent order changes, a semi-automatic folder gluer machine is enough.

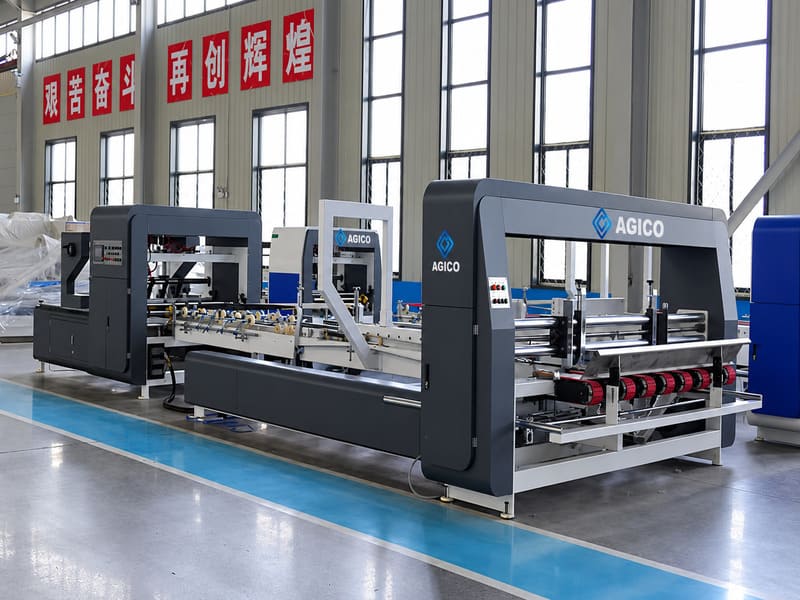

The automatic folder gluer completes carton blank feeding, folding, gluing, and bonding. Depending on the configuration, it can also complete counting, stacking, and bundling after gluing. This reduces manual work during production.
Main features: Automatic feeding, PLC and computer control, automatic counting and stacking.
View specifications

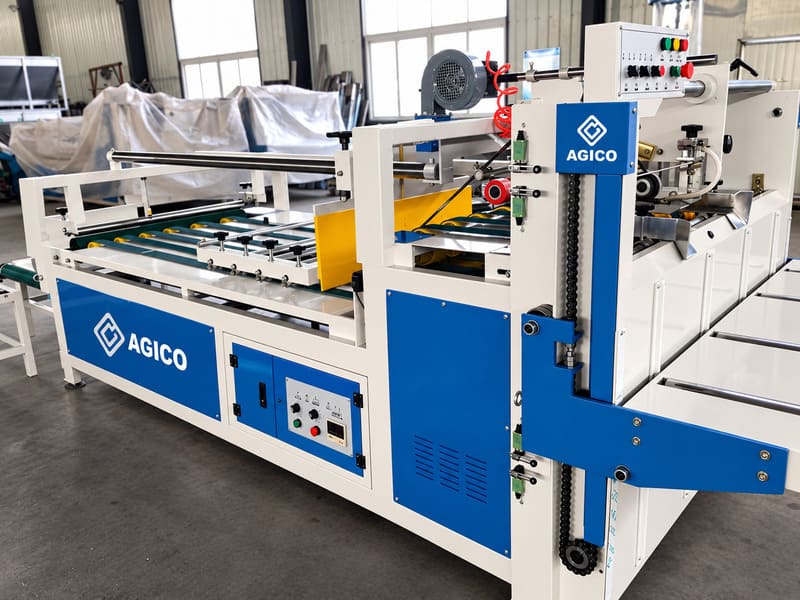

Our semi-automatic machine is mainly used for folding and gluing the corrugated carton blanks. The machine completes the main folding and gluing process. Some operations require manual work during feeding and folding. Overall, the machine has a simple structure and flexible operation.
Main features: low cost, low noise.
View specificationsLearn about AGICO PAPER’s folder gluer machine models. Do you know which machine to choose? If you are not sure, please see the table below.
Please tell us your carton sizes, corrugated board thickness, target output, and automation requirements. We can help you select the right model.
Discuss your requirementsSwipe or scroll to compare all columns
| Your Production Needs | What to Consider |
|---|---|
| Small production volume | Semi-automatic |
| Large production volume | Automatic |
| Different box sizes | Size adjustment range |
| Less manual work | Higher automation |
| Frequent order changes | Quick size adjustment |
| Need downstream automation | Counting, stacking & bundling |
The corrugated folder-gluer machine includes four working units.

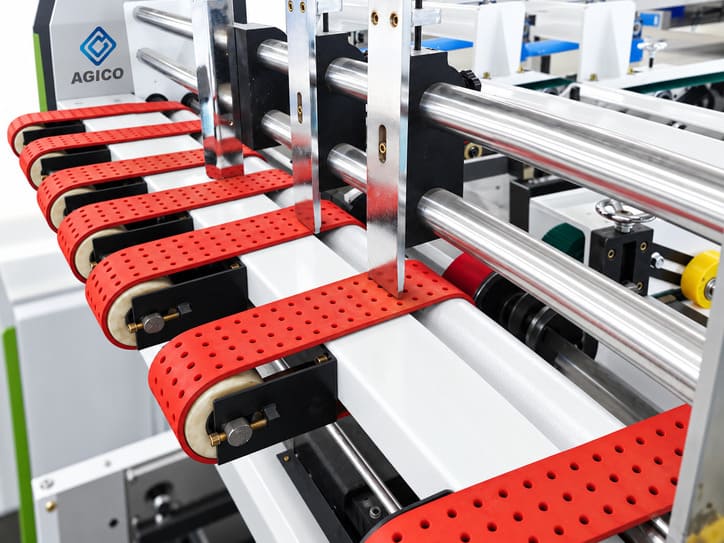

Feeding Unit
The feeding unit takes die-cut and creased carton blanks from the stack one by one. In this step, it feeds them into the next process.

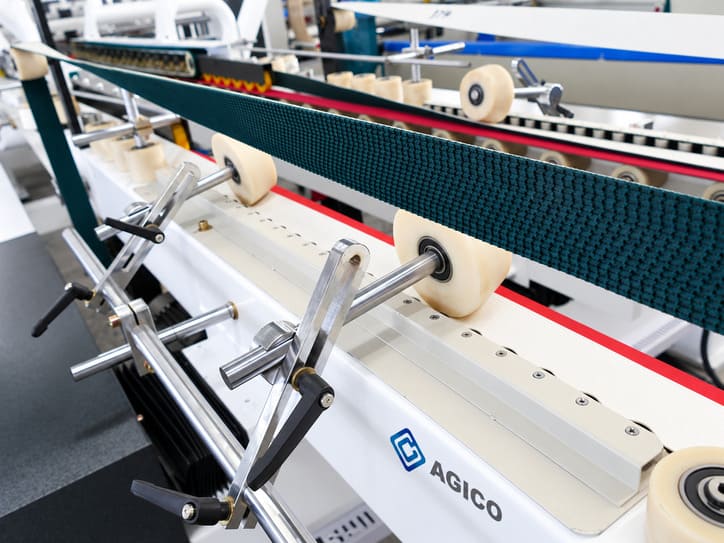

Folding Gluing Unit
This unit is the main processing section of the folder gluer machine. It completes the pre-folding, folding, and gluing of carton blanks. The guide rails and folding devices move the carton blanks and gradually fold them along the crease lines. Glue is applied to the specified position.

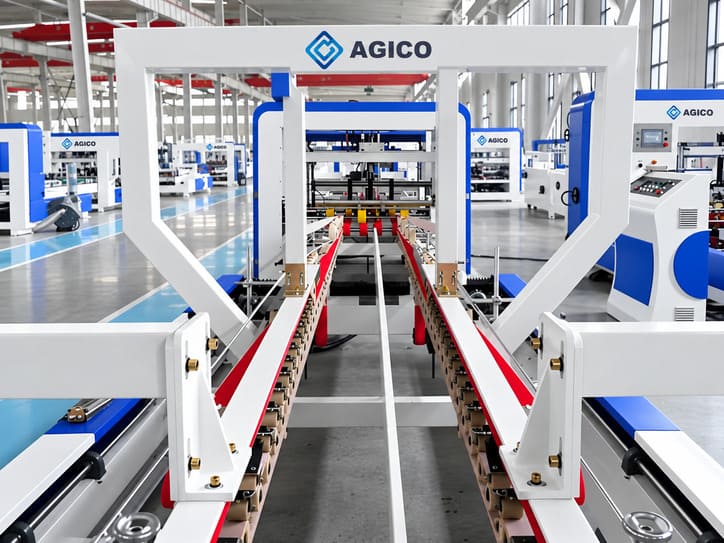

Counting and Stacking Unit
This unit conveys, counts, and stacks the folded and glued cartons. It also uses automatic alignment correction to keep the output stable.

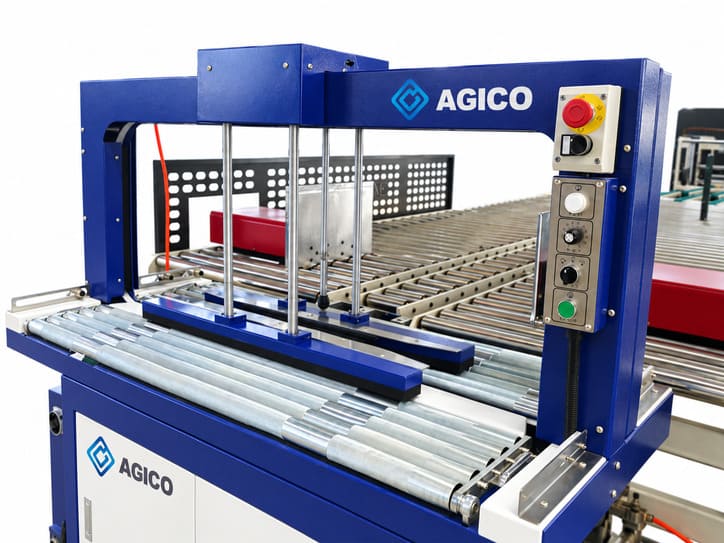

Automatic Bundling Section
(Optional configuration)
For machines with automatic bundling, the counted and stacked cartons are bundled for easier handling and transportation.
Stable Feeding
Vacuum feeding keeps carton blanks stable and smooth. It helps reduce feeding problems during continuous production.
Flexible Folding
Adjustable creasing wheels support 2–8 mm corrugated board thickness. You can handle different carton requirements more easily.
Adjustable Glue Amount
Adjust the glue amount according to your production needs.
Automatic Stacking
Our machine is convenient for automatic counting, alignment, and stacking. It helps reduce manual handling and makes bundling and transportation easier.

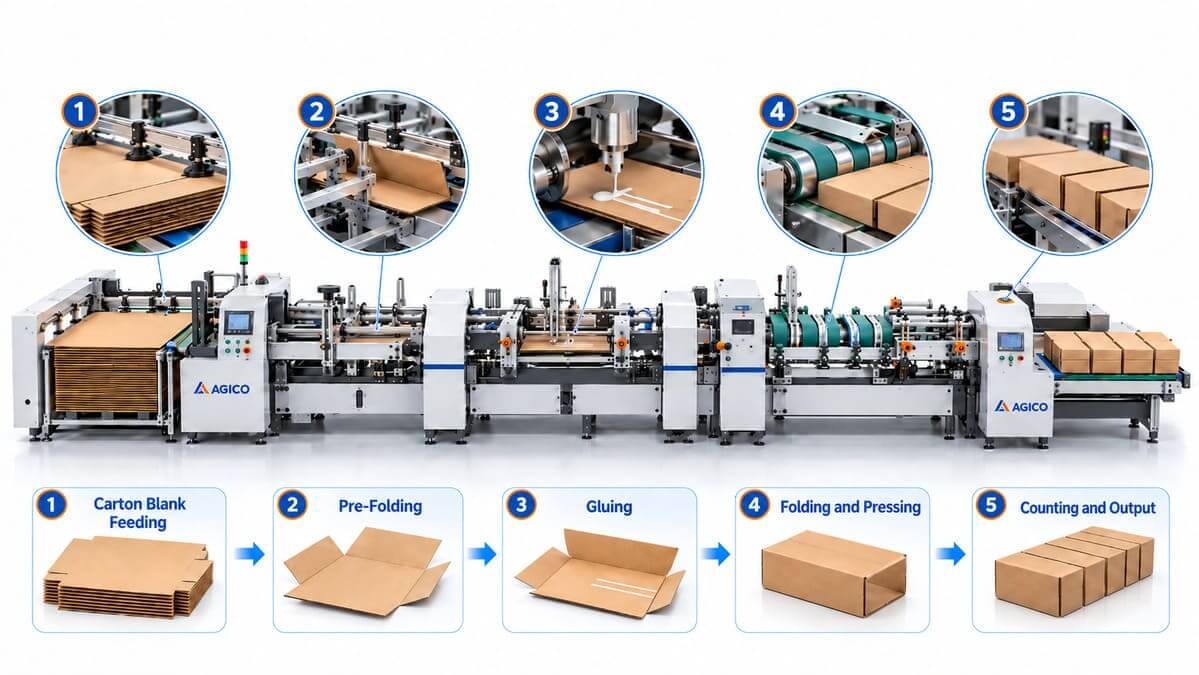

The carton blanks are placed in the feeding section. The feeding system takes them from the stack one by one. It feeds the blanks into the next process accurately and steadily.
The carton blanks enter the folding section. They are pre-folded along the crease lines. The blanks gradually form the carton shape.
During folding, the gluing device applies glue to the specified overlapping area. The carton blanks continue moving forward. Each part gradually folds and bonds together.
After folding and gluing, the carton blanks enter the pressing area. The conveyor belts and pressing devices move and press the cartons. The overlapping parts are fully bonded.
The finished cartons continue moving forward. They are counted and stacked according to the preset quantity. For machines with automatic bundling, the cartons can also be bundled automatically.
Different models are designed for different carton sizes and production requirements. The table below shows the main models and specifications.
AG-YF Automatic Types
Swipe or scroll to compare all columns

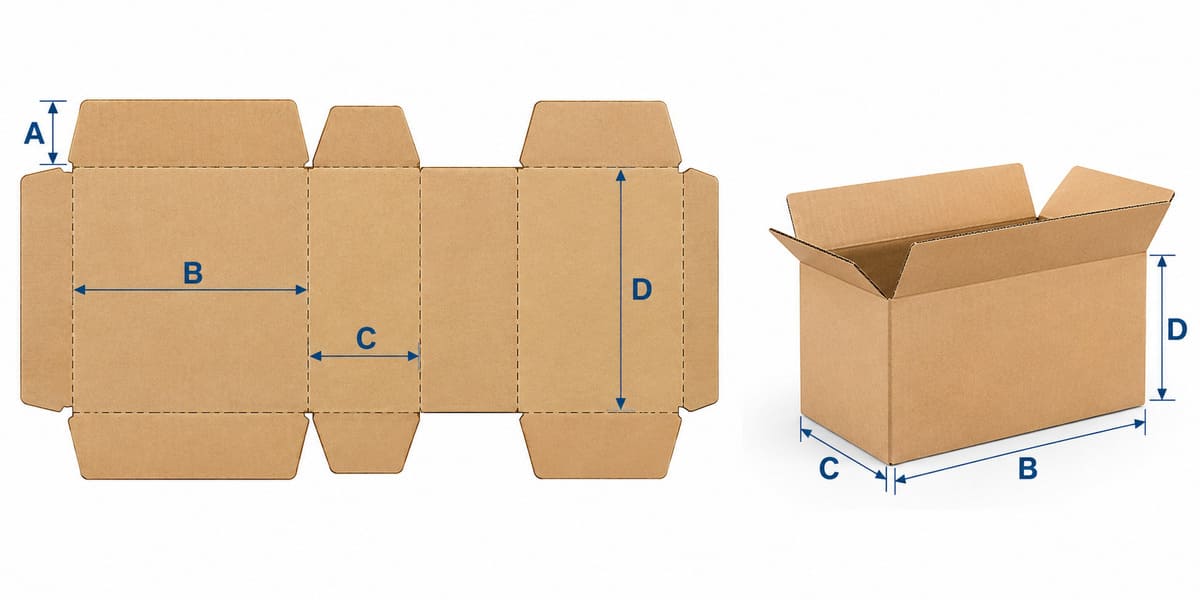

| Model | AG-YF-2000 | AG-YF-2400 | AG-YF-2600 |
|---|---|---|---|
| Size A (mm) | 70-880 | 80-880 | 80-880 |
| Size B (mm) | 340-2000 | 700-2400 | 700-2600 |
| Size C (mm) | 100-840 | 160-840 | 160-840 |
| Size D (mm) | 260-1200 | 260-1200 | 260-1200 |
| Install size | 3500×14000 | 4000 ×15000 | 4000 ×16000 |
| Power | 10kW | 12kW | 12kW |
AG-ZXJ Semi-Automatic Types
Swipe or scroll to compare all columns
| Parameter | AG-ZXJ-2800 |
|---|---|
| Size A | 240mm—1515mm |
| Size B | 340mm—2800mm |
| Machine power | 2.2kW |
| Weight | 2.2T |
The folder gluer price is influenced by the automation level, machine size, production speed, and machine configuration. Fully automatic machines can also include automatic counting, stacking, and bundling functions.
When choosing a folder gluer, you should also consider the operating costs, including labor, glue, electricity, and maintenance costs.
Swipe or scroll to compare all columns
| Price Factors | Main Considerations |
|---|---|
| Automation Level | Fully automatic / Semi-automatic |
| Processing Size | Maximum and minimum carton sizes |
| Production Speed | Target output and continuous production requirements |
| Automatic Functions | Counting, stacking, and automatic bundling |
| Customization | Special sizes or production configurations |
Corrugated box folder gluers are widely used in pharmaceuticals, fruits, retail, e-commerce, and more. Different products need different box sizes and designs. The right model depends on your box size, design, and production needs.
Quality Assurance

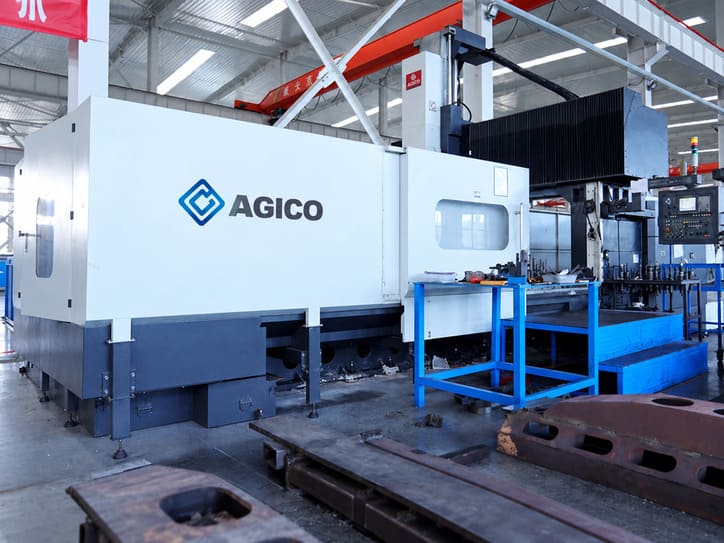

Our folder gluers are produced under an ISO 9001 quality management system. We focus on machine quality and stable operation.
Model Selection
Provide your carton size, production speed, and other requirements. We can help you choose the right folder gluer.
Automation Options
You can choose a fully automatic or semi-automatic folder gluer based on your production needs.
Related Equipment
If you need other corrugated box-making machines, we can also provide related machines.
