CORRUGATED BOARD EQUIPMENT
Complete corrugated board production lines and individual corrugator line equipment for new production lines, upgrades and replacements.
Corrugated board machinery is used to produce corrugated board. AGICO PAPER provides complete corrugated board production lines and individual corrugator machines. Whether you need a new production line or equipment upgrades and replacements, AGICO PAPER has a suitable solution for you.
To meet these varied needs, AGICO PAPER offers a full range of corrugated board production lines from basic single-facer corrugating lines to 3-ply corrugating lines, 5-ply corrugating lines, and heavy-duty packaging 7-ply corrugating lines.
Single-facer corrugated board production lines produce single-facer board. This board is usually used in lightweight packaging like inner lining partitions and cushioning pads. It is suitable for start-ups and small-batch production.
Learn more
3-ply corrugated board production lines are widely used corrugating lines in carton manufacturing. This corrugated board production line produces single-wall corrugated board for lightweight, low-cost single-wall corrugated boxes.
Learn more
5-ply corrugated board production lines produce double-wall corrugated board for medium- and heavy-duty packaging. The line can work with different flute combinations to meet different strength and cushioning requirements. The board is widely used for home appliances, furniture, industrial products, and other heavy-duty packaging.
Learn more
7-ply corrugated board production lines produce triple-wall seven-ply corrugated board. This board has good strength and cushioning performance. It is mainly used for heavy machinery, auto parts, industrial equipment, export packaging, and other heavy-duty packaging.
Learn more
AGICO PAPER corrugator equipment includes mill roll stands, automatic splicers, single facers, gluing machines, double facers, and more. These machines mainly finish the corrugated paper production process, including preheating, corrugating, gluing, and laminating.
Dry end equipment includes slitter scorers, cutoff machines, and stackers. These machines accurately cut and arrange corrugated board according to order requirements.
Wet End Corrugator Equipment

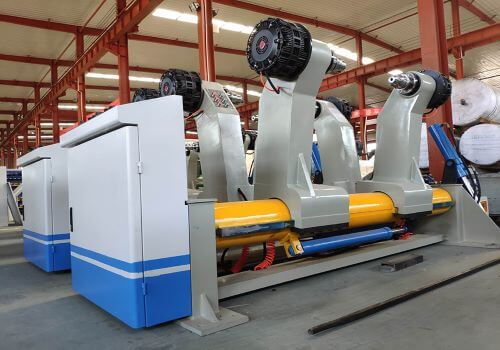

Type: Electric / Hydraulic Series
Features: Stable support, consistent web tension
Specifications: Max. Load: 5T | Max. Roll Diameter: Φ1500 mm
Learn more

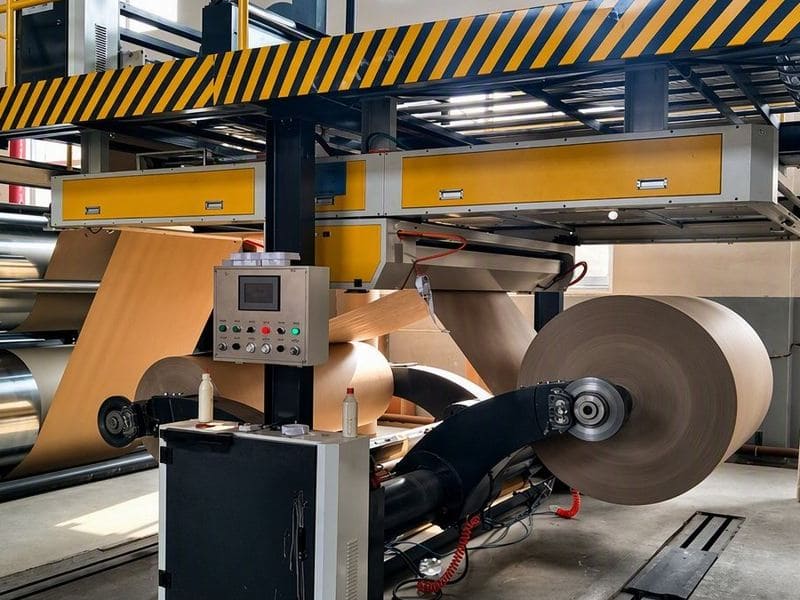

Type: High-Speed Automatic Splicing Series
Features: Fast roll splicing, PLC control
Specifications: Design Speed: 150 m/min | Max. Roll Diameter: Φ1500 mm
Learn more
Type: Cassette Type / Vacuum Type Series
Features: Quick roll change, precise bonding
Specifications: Design Speed: 100–300 m/min | Effective Width: 1400–2500 mm
Learn more
Type: AG-E Series / AG-C Series
Features: PLC temperature control, stable operation
Specifications: Design Speed: 100–250 m/min | Effective Width: 1400–2500 mm
Learn more
Type: AG-GM-C Series
Features: Accurate glue control, uniform coating
Specifications: Design Speed: 200 m/min
Learn more

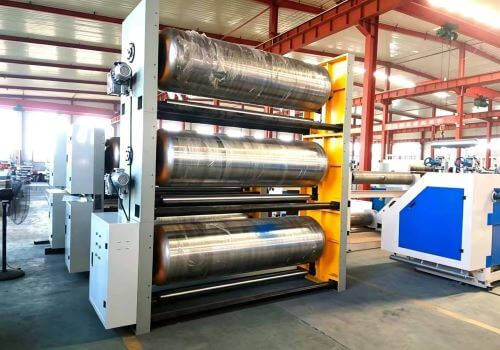

Type: Single / Double / Triple Preheating Series
Features: Adjustable wrap angle, multi-layer options
Specifications: Preheating Roll Diameter: 400–1100 mm | Effective Width: 1400–2200 mm
Learn more
Type: Single / Double / Triple Deck Conveyor Series
Features: Auto web guiding, stable tension control
Specifications: Design Speed: 180 m/min | Effective Width: 1400–2200 mm
Dry End Corrugator Equipment
Type: Automatic / Electric Adjustment Series
Features: Automatic knife setup, precise slitting
Specifications: Design Speed: 150–250 m/min | Effective Width: 1400–2500 mm
Type: Basket / Gantry / Right-Angle Stacking Series
Features: Synchronized control, automatic stacking
Specifications: Design Speed: 100–250 m/min | Effective Width: 1400–2500 mm
Type: NC Control Series (Single / Double Layer Options)
Features: Auto web guiding, clean cutting, ±1 mm accuracy
Specifications: Design Speed: 100–150 m/min | Effective Width: 1400–2500 mm

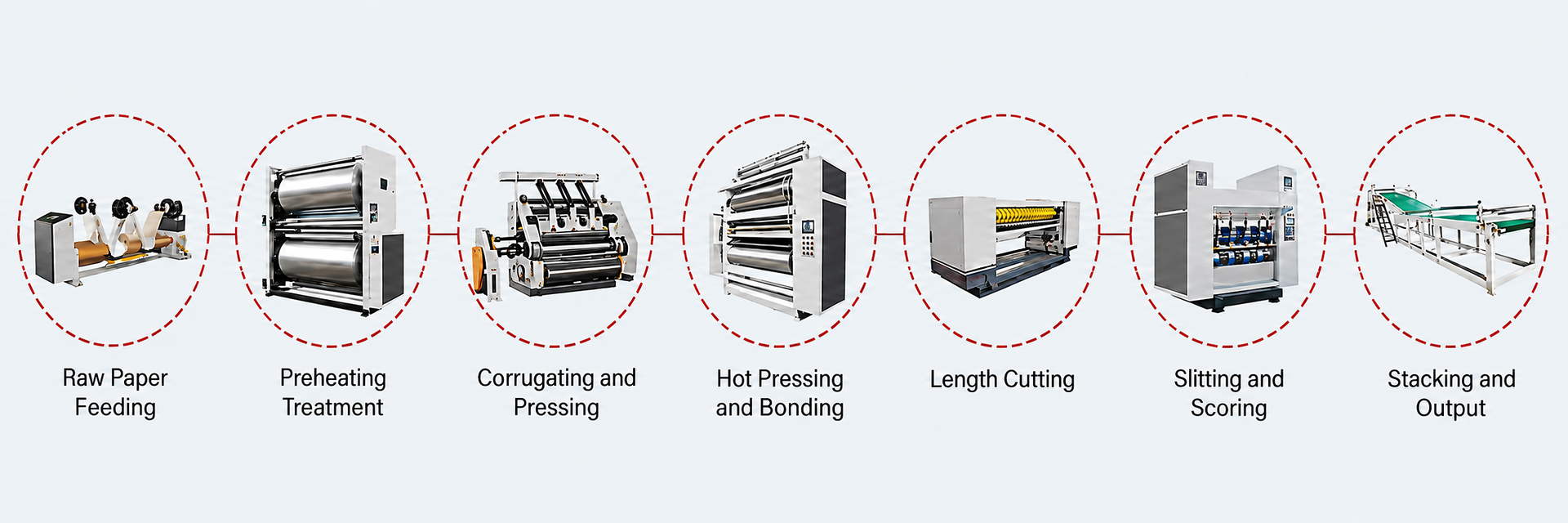

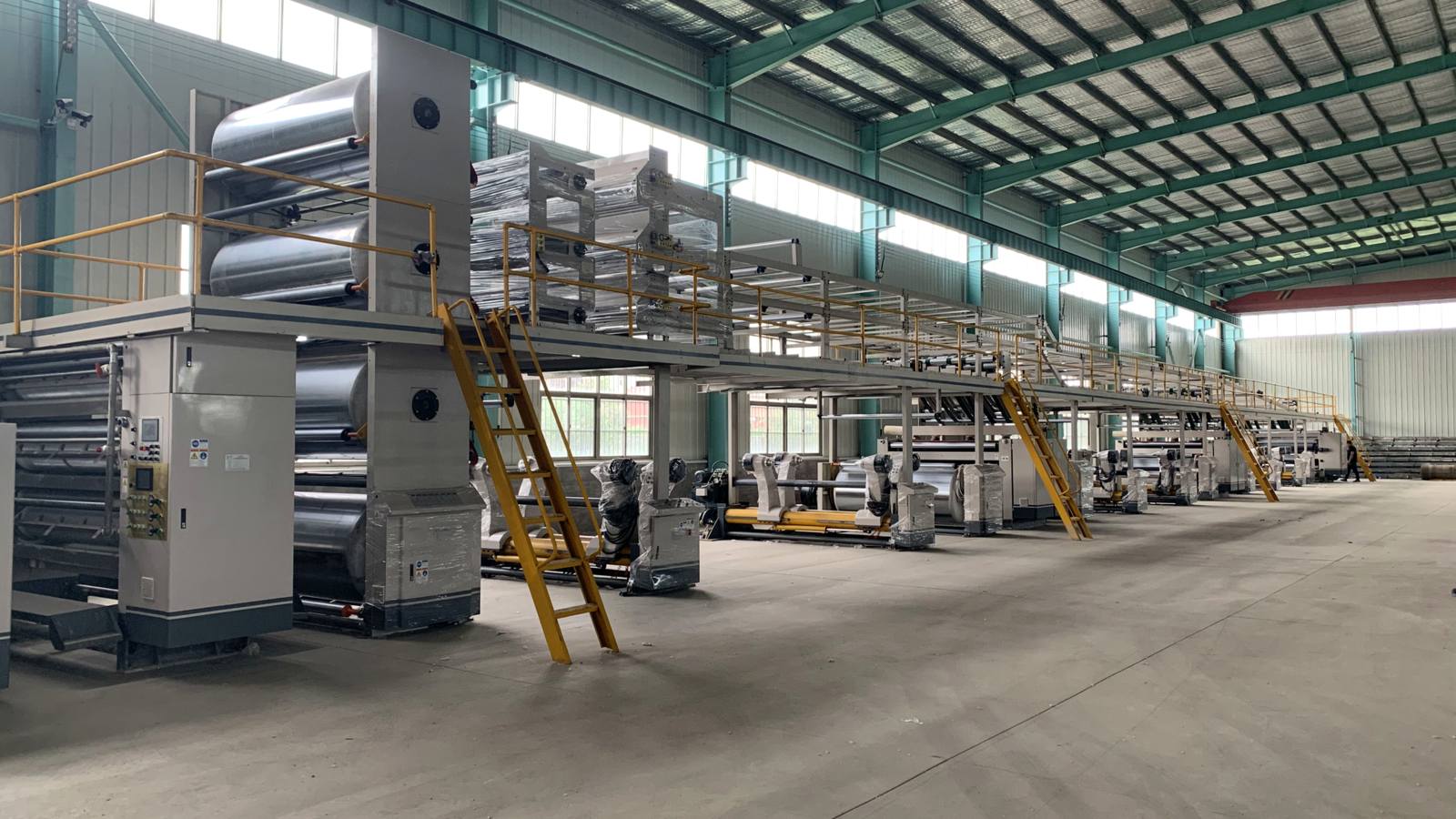

Corrugated board is made by a corrugator machine in a corrugated board production line.
1. Mill Roll Stand Feeding
The raw paper roll is put on the mill roll stand, and the paper is continuously supplied to the corrugated board production line.
2. Preheating Treatment
The paper goes through the preheater to adjust its temperature and moisture before corrugating.
3. Corrugating and Pressing

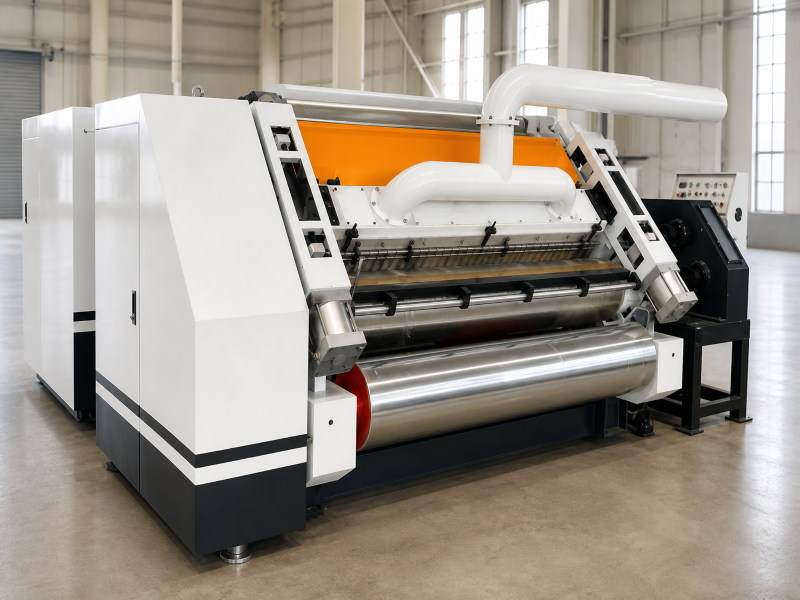

The corrugating medium passes through the corrugating rolls in the single facer to form flutes. The single facer applies adhesive and bonds the fluted medium to the liner paper, forming single-face corrugated board.
4. Gluing, Hot Pressing and Bonding

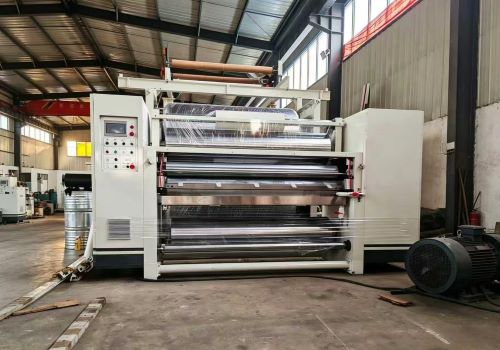

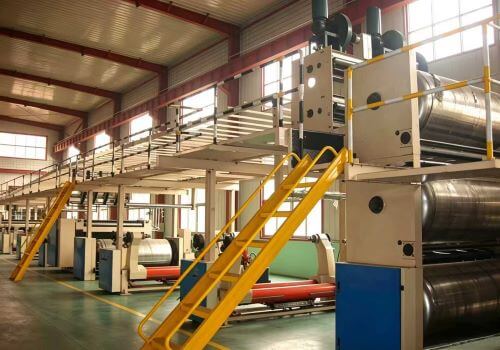

The single-face corrugated board passes through the corrugator bridge and enters the gluing machine. The gluing machine applies adhesive evenly to the flute tips. The board then enters the double facer, where it is bonded with liner paper under heat and pressure to form finished corrugated board.

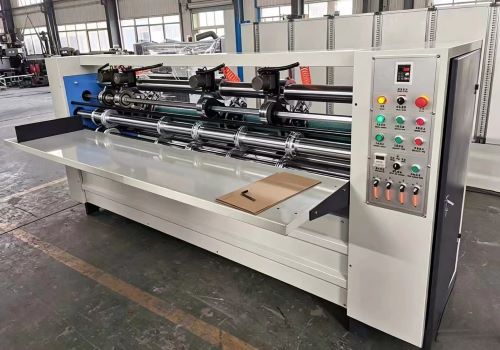

5. Slitting and Scoring
The slitter scorer machine slits the corrugated board to the required width and makes score lines for later carton forming.

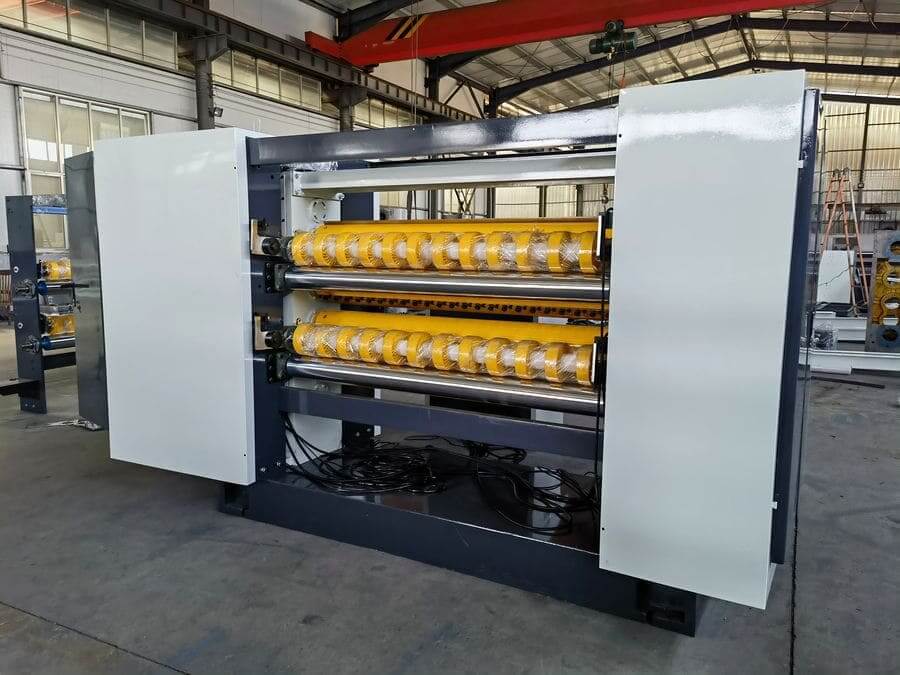

6. NC Cut-off Machine Cutting
The NC cut-off machine cuts the corrugated board to the required length.

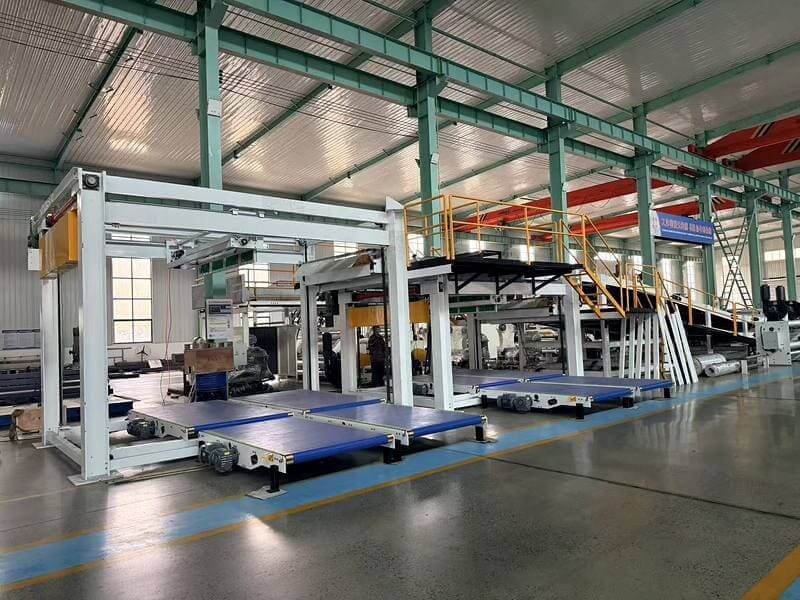

7. Stacking and Output
The automatic stacker machine collects and stacks finished boards for delivery.
EQUIPMENT CONFIGURATION
Tell us whether you need a new production line or equipment upgrades and replacements.
