CORRUGATOR WET END
Uniform Gluing for Strong, Consistent Corrugated Board Bonding.

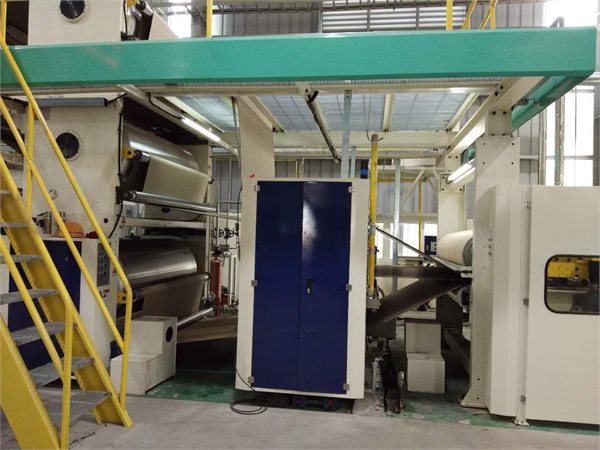

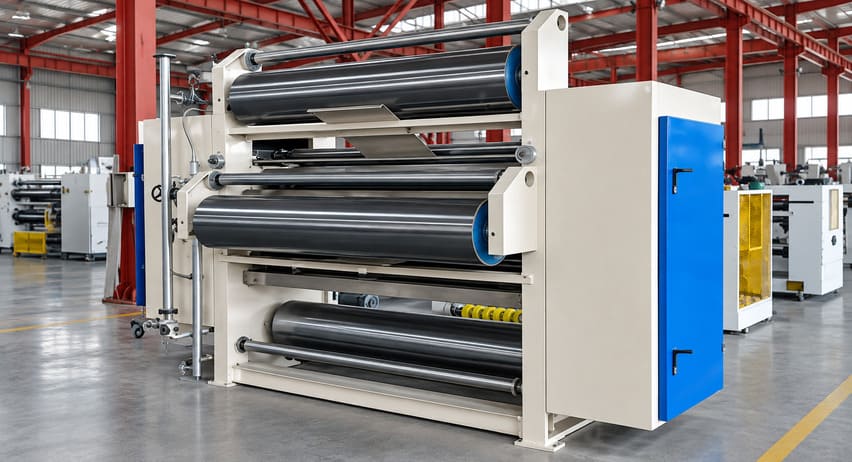

The corrugated glue machine is also known as a glue applicator. It is an essential part of a corrugated board production line. This machine is installed between the corrugator bridge and the double backer.
AGICO PAPER’s corrugated glue machine applies adhesive evenly and accurately to the flute tips of single-face corrugated board. The glued board then enters the double facer. There, it is pressed and bonded with the liner to form strong, multi-layer corrugated board.
The glue unit works through four steps: glue feeding, glue metering, flute-tip gluing, and bonding. The machine controls glue delivery, application, and glue volume. The glue is applied evenly to the flute tips of single-face corrugated board.
Board feeding
The single-face corrugated board is fed in from the single facer and enters the glue unit. It first passes through the preheating roll. This adjusts the board’s moisture and temperature. It also helps the glue adhere evenly in the next step.
Glue Application
The hard chrome-plated anilox glue roll rotates through the glue pan and picks up glue. It spreads the glue across the roll surface. The roll gap controls the glue film thickness. You can adjust the gap by electric control with a digital display or by hand.
Flute-Tip Gluing
The glue roller contacts the single-face corrugated board and applies glue to the flute tips. The glue does not directly contact the flute valleys. A pneumatic lifting system works with a hold-down bar or pressure roller during gluing.
Board Merging and Bonding
The glued single-face corrugated board meets the liner. Both then enter the double facer and pass through its heating and pressing section. With heat and pressure, the glue cures and the paper layers bond together. This forms the finished corrugated board.
The glue roll runs in sync with the line speed. When the machine stops, it can run independently at a low speed.
Stable Gluing Quality
AGICO PAPER’s corrugated glue machine provides stable gluing performance. It helps reduce problems such as delamination, glue penetration, and board wrinkling. This also helps reduce defective boards and rework, lowering production waste.
Lower Glue Consumption
Accurate glue application helps reduce excess glue and glue waste. When starch-based glue is used for corrugated board production, you can reduce glue consumption and long-term production costs.
Different Flute Types
AGICO PAPER’s corrugated glue machine is suitable for different flute types, such as B, C, and E flute. The gluing settings are easy to adjust when changing orders. This helps shorten equipment adjustment and production preparation time.
Stable High-Speed Operation
The gluing unit runs stably and can work with medium- and high-speed corrugated board production lines for continuous production. A stable glue supply helps maintain consistent gluing performance. It also reduces production interruptions caused by glue supply or gluing problems.

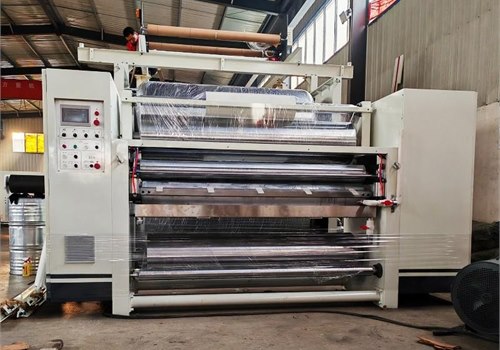

Glue Tank Assembly

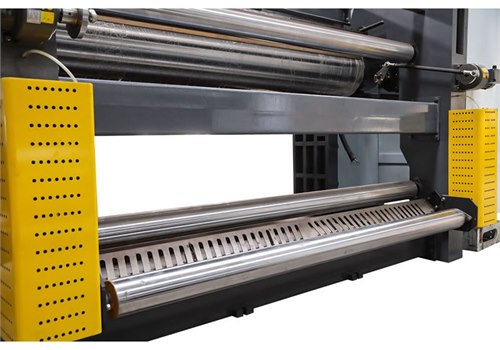

Anilox Glue Roll
Glue Metering Roll

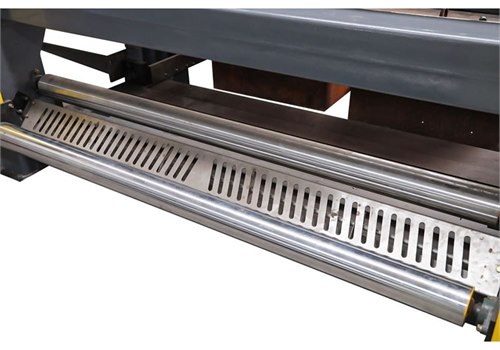

Board Guiding System

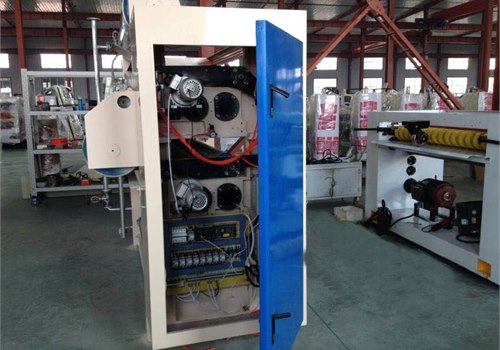

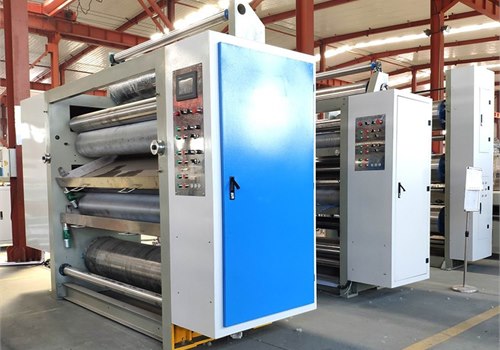

Drive and Control System
Automatic Glue Circulation System
| Specification | Details |
|---|---|
| Maximum Machine Speed | 250 m/min |
| Glue Applicator | Hard chrome-plated Anilox glue roll |
| Drive System | Variable-frequency drive |
| Glue Amount Adjustment | Motorized adjustment with digital display |
| Glue Circulation | Automatic |
The corrugated glue machine is used for continuous production of three-ply, five-ply, and seven-ply corrugated board. The machine supports common flute types such as B, C, and E flutes.

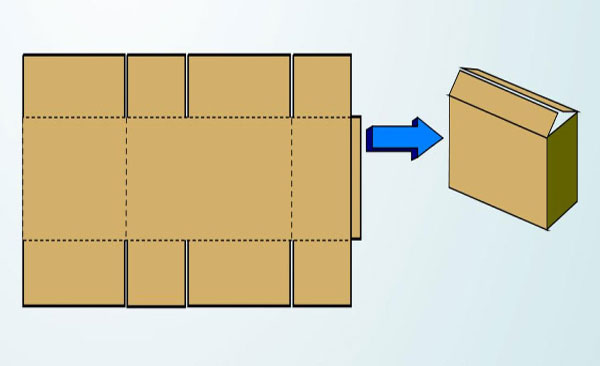

It is suitable for corrugated board production for e-commerce packaging, food packaging, home appliance packaging, and logistics packaging. It can also be used for new production lines or existing gluing unit upgrades.
Choosing AGICO PAPER means choosing a reliable corrugated machinery supplier with professional experience and dependable solutions.
Related Equipment

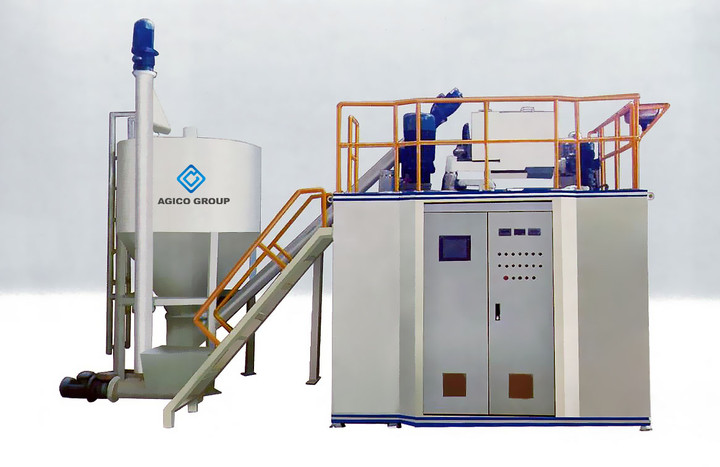

AGICO PAPER also provides an automatic glue preparation system. The system automates the glue preparation process and helps maintain stable glue quality. It is suitable for corrugated board manufacturers.
If you are interested in this automatic glue preparation system, please contact us for more information or purchase inquiries.
It is installed between the corrugator bridge and the double facer. It applies glue to the single-face corrugated board before entering the double facer.
We support common flute types such as B, C, and E flutes. The gluing parameters can be adjusted according to production needs.
Yes. It supports production line upgrades. We can provide an upgrade solution based on the working width, installation space, and production speed.
Clean the glue tank and glue roll regularly to prevent starch-based glue from drying. Check the transmission parts to maintain stable operation.
No. The glue roll keeps running at low speed during stops to prevent glue from drying.
