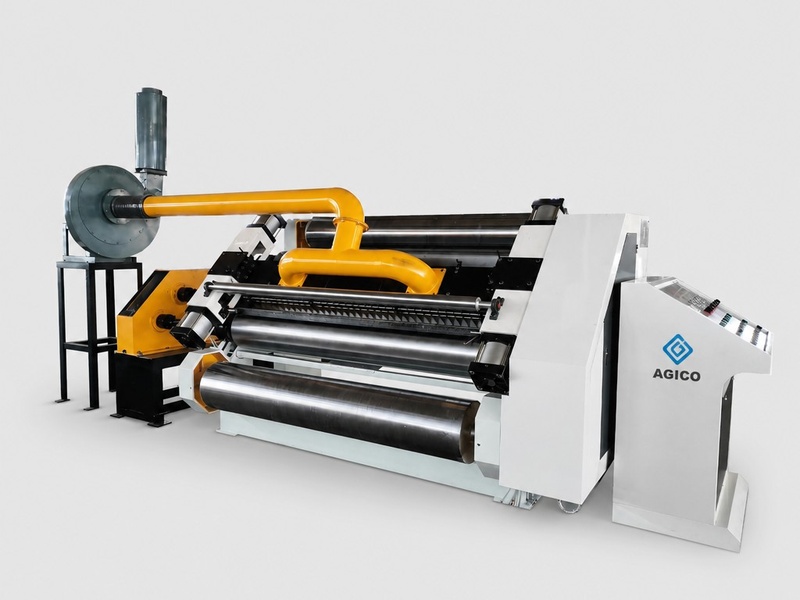

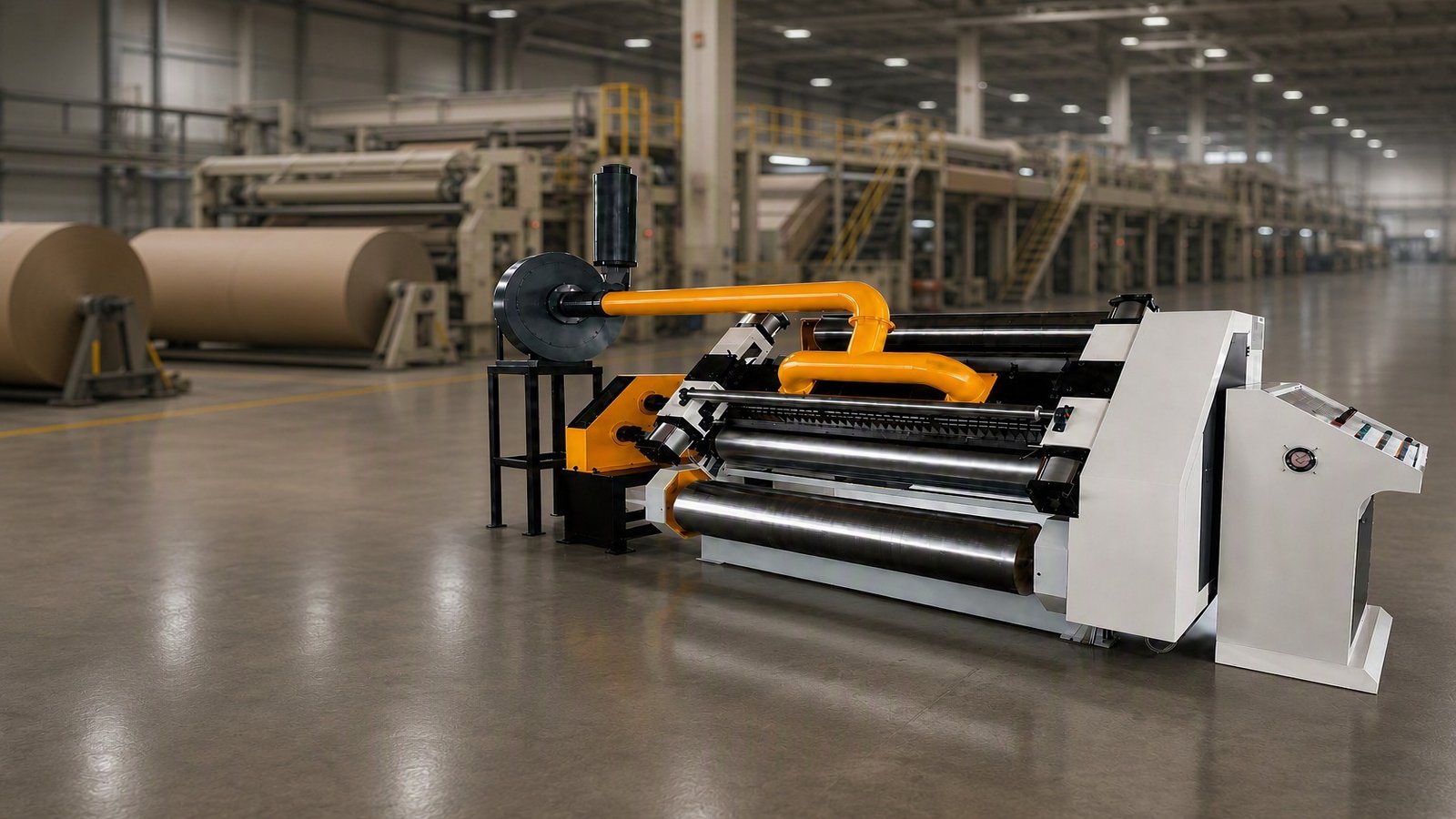

The fingerless single facer is another type of single facer machine offered by AGICO PAPER. This equipment is applied to the 3/5/7-ply corrugated board production line to produce single-face corrugated board.
The cassette single facer focuses on quick flute changes. In contrast, the fingerless single facer prioritizes stable forming performance and consistent board quality. Our equipment uses vacuum adsorption technology. Some models are equipped with an airflow control system to help keep the corrugating medium stable on corrugating rolls during the production process.
Fingerless Design
Why is it called the fingerless corrugation machine? That’s because it uses a different forming structure from traditional single facers. It removes the pressure fingers to reduce friction during operation and improve forming stability.

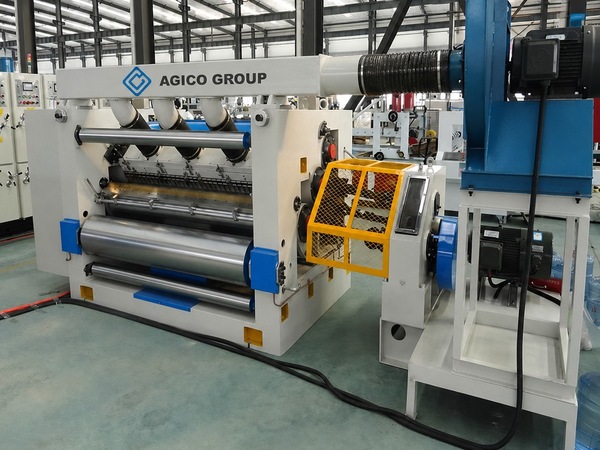

Vacuum Adsorption Control
This technology provides a more stable control method for the corrugating medium. By using negative pressure, it helps the corrugating medium closely connect with the corrugating rolls and achieves stable forming performance during high-speed operation.

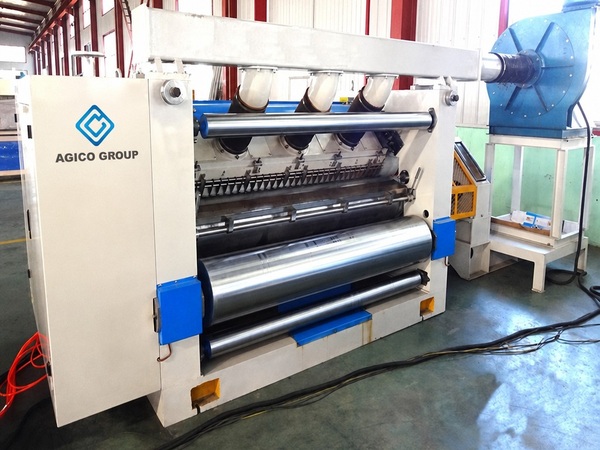

Airflow Control
Some of our equipment models are equipped with an airflow control system. It can adjust the suction force to maintain stable control of the corrugating medium and improve board quality.

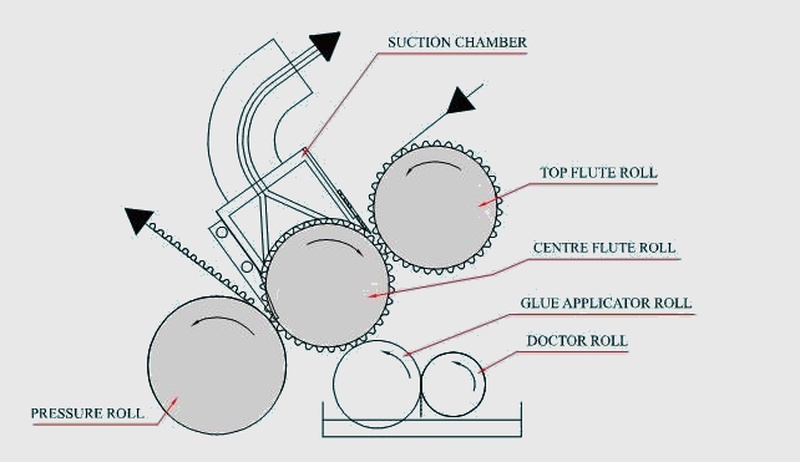

The fingerless corrugation machine uses a vacuum adsorption system to help the corrugating medium maintain close contact with the corrugating rolls during operation.
Paper Holding by Vacuum Adsorption
When the corrugating medium enters the corrugating roll area, the vacuum holes on the rolls create a suction force to hold the medium on the roll surface. It then moves smoothly with the corrugating rolls.
Corrugating Formation
After the corrugating medium enters the forming area, the upper and lower corrugating rolls work together through precise flute profiles to form a continuous corrugated shape.
Gluing and Bonding
After forming, the corrugating medium passes through the glue application unit. It bonds with the linerboard under the pressure roll, forming continuous single-face corrugated board.

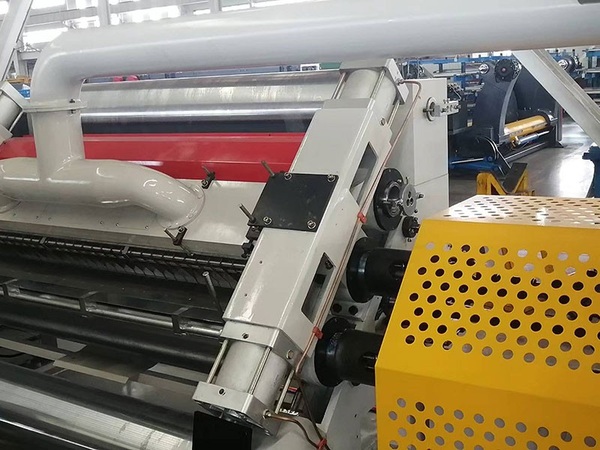

Pneumatic Control System
The upper corrugating roll, pressure roll, and lifting glue roll all use pneumatic control to achieve stable pressure adjustment.

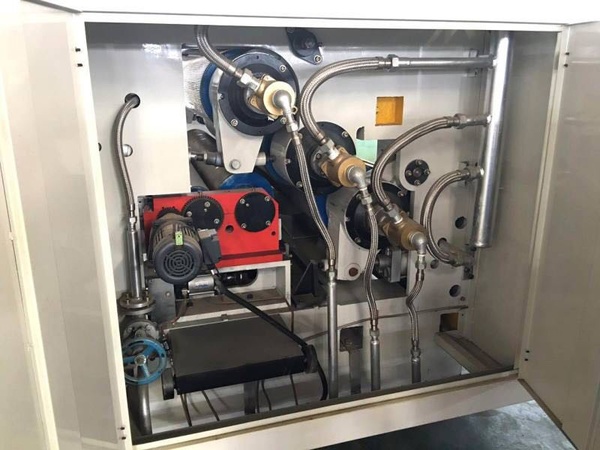

High-Quality Corrugating Rolls
Our corrugating rolls are made of high-quality 52CrMo alloy steel. They undergo heat treatment and surface grinding processes. The hardness reaches HRC 58-60.
Automatic Glue Circulation System
The gluing application unit uses an automatic glue circulation system and is equipped with an engraved and chrome-plated glue roll.
Independent Glue Unit Operation
This gluing application unit also supports independent operation when the main machine stops. The main motor uses variable frequency control.
AGICO PAPER supplies the S and C series of fingerless corrugation machines.
| Model | Max. Speed | Corrugating Roll Size | Effective Width | Roll Material | Forming Method |
|---|---|---|---|---|---|
| AG-SF-320S | 120 m/min | Φ320 mm | 1,400 – 2,500 mm | 52CrMo Alloy Steel, HRC58–60 | Vacuum Adsorption |
| AG-SF-360S | 150 m/min | Φ360 mm | 1,400 – 2,500 mm | 52CrMo Alloy Steel, HRC58–60 | Vacuum Adsorption |
| AG-SF-320C | 150 m/min | Φ320 mm | 1,400 – 2,500 mm | 52CrMo Alloy Steel, HRC58–60 | Vacuum Adsorption + Wind Control |
| AG-SF-360C | 180 m/min | Φ360 mm | 1,400 – 2,500 mm | 52CrMo Alloy Steel, HRC58–60 | Vacuum Adsorption + Wind Control |
| AG-SF-380C | 200 m/min | Φ380 mm | 1,400 – 2,500 mm | Optional Tungsten Carbide | Vacuum Adsorption + Wind Control |
Stable Board Quality
AGICO PAPER fingerless single facer adopts vacuum adsorption control, making the corrugating medium closely contact with the corrugating rolls during forming and reducing running offsets. It helps your corrugated board production line produce more stable-quality single-face corrugated board.
Reduced Paper Waste
The fingerless structure design can reduce the friction between mechanical parts and the corrugating medium during operation. It also reduces paper waste caused by paper damage and unstable forming, improving overall production efficiency.
Support for Different Flute Types
Our equipment supports various flute types, including A, B, C, E, and F flutes. According to your factory conditions, we can provide different heating methods to meet different production requirements.
Dedicated R&D Team
Rich Export Experience
Precision Engineering
One-Stop Supply Capability
OEM & ODM Supported
Rapid After-Sales Service
The equipment price mainly depends on the working width, production speed, and configurations. You can send us your requirements, and we will provide a quotation.
We offer fingerless single-facer heating methods including electric heating, steam heating, and oil heating. The steam heating is suitable for high-speed corrugator lines. The electric heating is suitable for flexible installation. The oil heating is suitable for production environments that require stable temperature control.
Our fingerless single-facer supports working widths from 1400 mm to 2500 mm. We also offer customization solutions according to your mill roll stand and corrugator line.
The equipment's maximum speed is 120-200 m/min, depending on the model. Models with airflow control can reach higher speeds.
The cassette single-facer focuses on quick flute changes and production flexibility. The fingerless single-facer focuses on stable forming performance and consistent board quality.
