Paper Preparation
The corrugating medium and linerboard are installed on the mill roll stand and sent to the gluing section by the conveyor belt.
Single-Facer Corrugation Machine
Choose the forming system for your corrugator line.
Choose your forming system

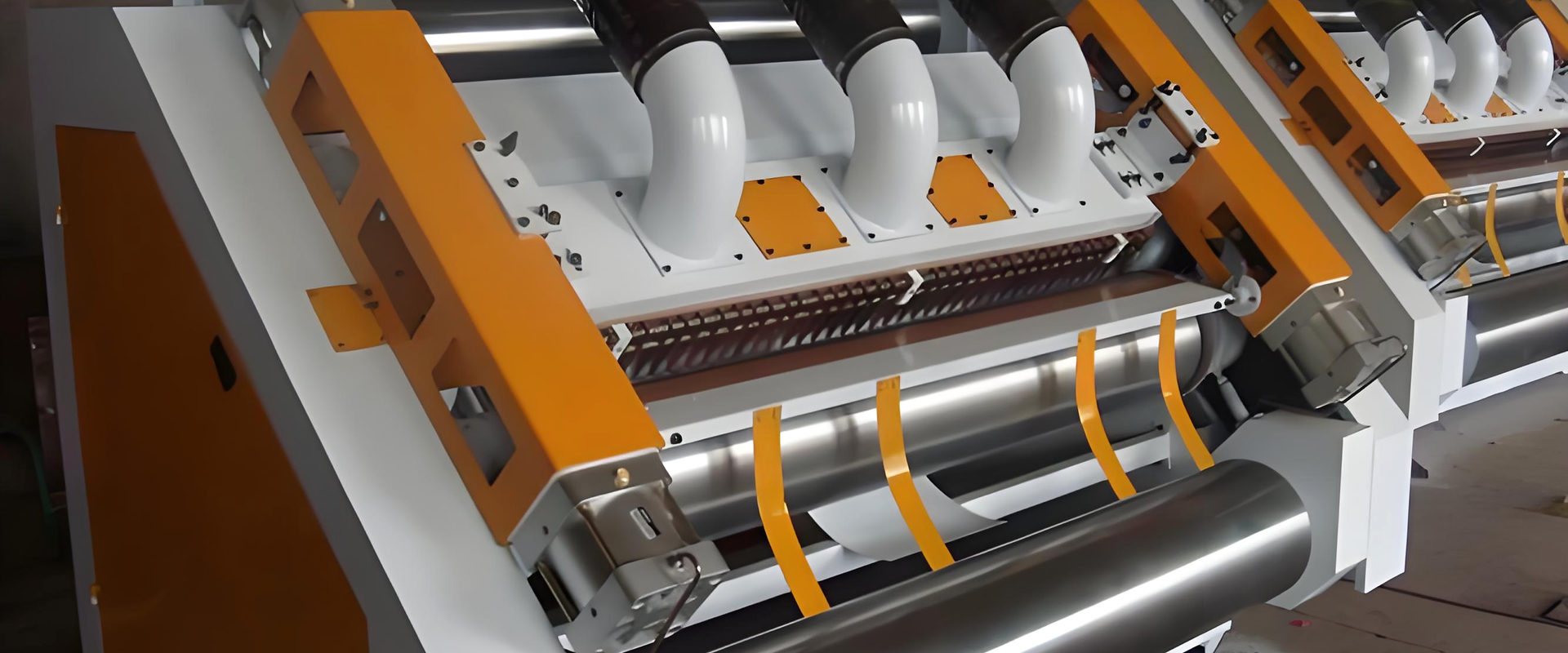

The single-facer corrugation machine is a core machine in a corrugated board production line. It bonds the corrugating medium with linerboard to produce single-face corrugated board. After heating, curing, and drying, the single-face corrugated board is cooled for the next production process. The core components of this equipment include corrugating rolls, pressure rolls, preheating rolls, and so on.
Next, let us learn about the AGICO PAPER single-facer corrugation machine.
AGICO single-facer corrugation machine for sale
AGICO PAPER offers the cassette single-facer machine and the fingerless single-facer machine. You can choose based on your actual production capacity and process requirements.

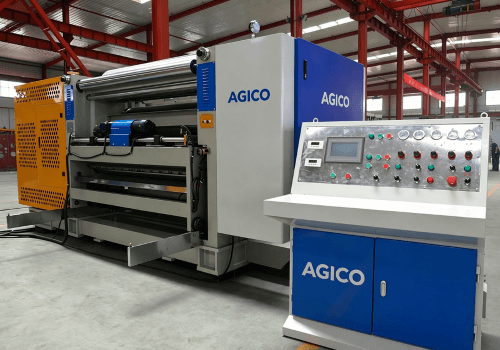

The Cassette Single-Facer Machine
Models: AG-SF-320D / 360D / 450D / 450Z / 550Z
Main Features: Our equipment can quickly change corrugating rolls in 10-15 minutes, and it is equipped with a movable gluing system for easy cleaning.
Explore this machine

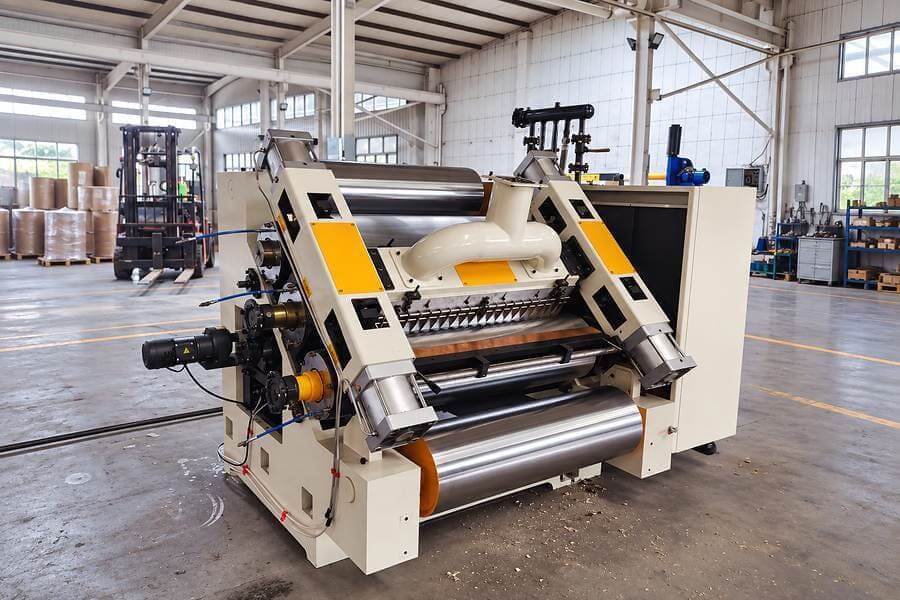

The Fingerless Single-Facer Machine
Models: AG-SF-280S / 320S / 320C / 360C / 380C
Main Features: This equipment supports various heating options. The corrugating rolls are made of 52CrMo alloy steel for a long service life.
Explore this machineHow to Choose the Right Single Facer Machine
| Features / Type | Cassette Single Facer | Fingerless Single Facer |
|---|---|---|
| Design Speed | 150–300 m/min | 100–200 m/min |
| Roll Change Time | 10–15 Minutes | Standard Change |
| Best For | Multi-flute, frequent order changes | Medium scale, cost-effective lines |

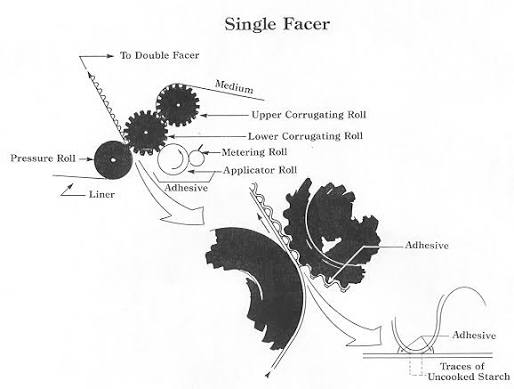

Working Principle of the Corrugated Single Facer Machine
The main role of the single-facer corrugation machine is to combine the linerboard and corrugating medium to form single-faced corrugated board. Its working principle is divided into the following steps.
Gluing Process
Then, adhesive is evenly applied to the corrugating medium to prepare for the following bonding process.
Heating and Bonding
Through heating plates to heat and pressure rolls to press, the corrugating medium with adhesive is firmly bonded with the linerboard to form single-faced corrugated board.
Forming and Delivery
After cooling, the single-faced corrugated board is transferred to the next production process.
Main Components of Single Facer
Mill Roll Stand: It is used to hold and supply corrugating medium to ensure the supply of paper on the corrugated board production line.
Corrugating Rolls: Through the upper and lower corrugating rolls, the corrugating medium is made into the fluted shape, forming the corrugated structure.
Pressure Roll: Applies pressure to bond the glued corrugating medium with the linerboard. It helps maintain stable single-faced corrugated board quality.
Glue Applicator Roll: Applies adhesive evenly to the corrugating medium, allowing it to bond firmly with the linerboard.
Heating System: Provides heat for the bonding process and promotes adhesive curing, improving the bonding performance of single-faced corrugated board.
Key Features of the Single-Facer Corrugation Machine
Stable Board Quality
The machine uses precise glue application and a stable heating system. It can ensure the glue is applied evenly and the heating is consistent. It helps reduce warping, bubbling, and delamination in corrugated board production.
Flexible Operation
AGICO PAPER single facer supports multiple heating methods, including steam, electric, and thermal oil heating. These heating methods help you adapt to different factory building conditions. Our equipment supports working widths of 1400–2500 mm with a vacuum suction belt with adjustable airflow.
Efficient Operation
The single-facer corrugation machine's modular design is convenient for changing the corrugating rolls. It can complete roll changes within approximately 10–15 minutes. It is easy to clean.
Reliable Production
With a design speed of 100-300 m/min, this equipment can meet the medium- and high-speed production requirements. It also reduces your maintenance downtime to ensure continuous and reliable corrugated board production.
Why choose AGICO as Your Single-Facer Manufacturer
Choosing AGICO PAPER is not only about purchasing equipment, but also about choosing a reliable partner.
One-Stop Service
AGICO PAPER is a professional corrugated machinery manufacturer; we can offer you one-stop service from individual corrugator machines to a corrugated board production line, to spare parts and other related needs. We also provide customized product solutions according to your requirements.
Global Export Experience
We have a corrugator equipment design team with more than 20 people. There are experienced workshop workers and a professional sales team. Currently, our products have been sold to America, Japan, Russia, and other countries.
Certified Quality
AGICO PAPER obtained ISO 9001 certification in 2005 and holds complete equipment-related patents. Our products ensure reliable quality and performance.
After-Sales Support
Our team is online 24/7, always ready to respond to your needs and provide timely support. A complete after-sales system can help you solve equipment operation and maintenance issues.
FAQ
What is a single-facer corrugation machine?
A single-facer corrugation machine forms corrugating medium into flutes and bonds it with linerboard to produce single-face corrugated board.
What is the price of a single-facer corrugation machine?
The machine price depends on the machine type, working width, heating method, and other factors. You can contact us to get a quotation.
What is the difference between a cassette-type and a fingerless single-facer?
The cassette single facer supports a 10-15-minute roll change time. It is suitable for production lines with large orders. The fingerless single facer is suitable for medium- and high-speed corrugator lines.
What is the working width range of single-facer machines?
AGICO PAPER single facer supports working widths of 1400-2500 mm. It can meet different corrugated board production requirements.
