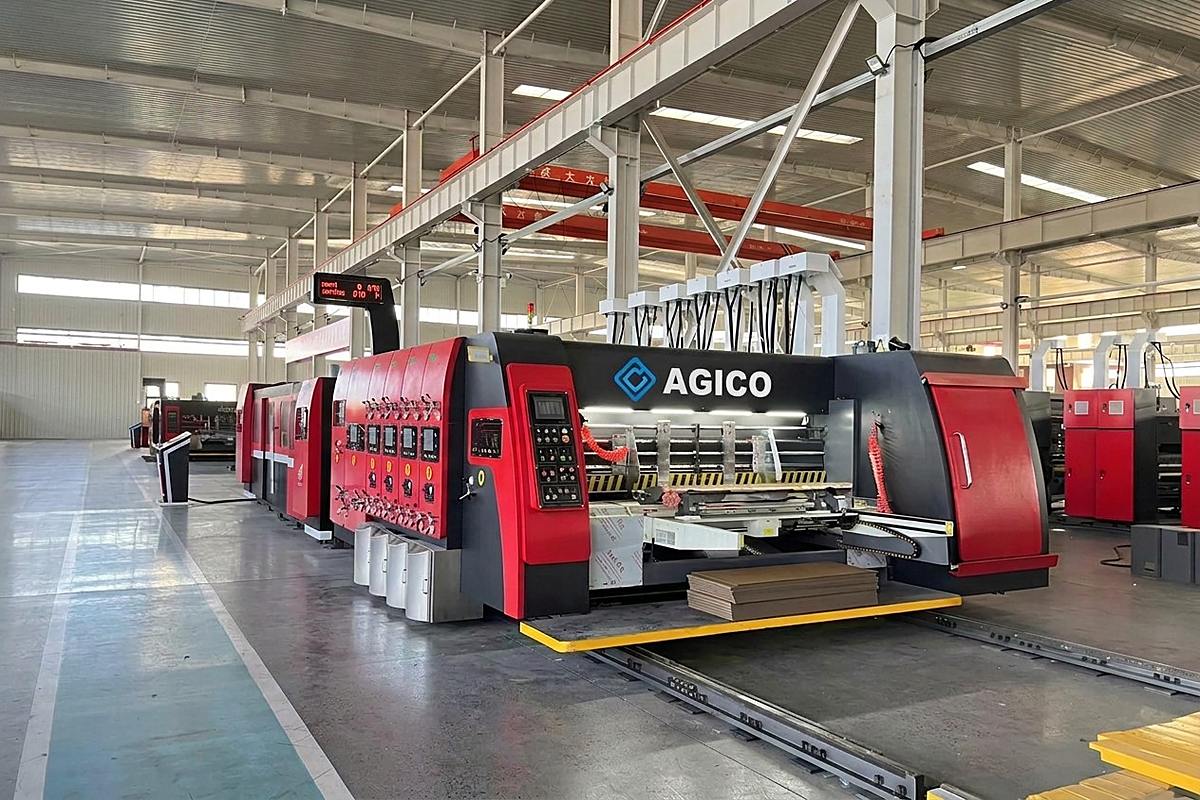

The flexo folder gluer is a corrugated box production machine for high-efficiency, fully automatic, all-in-one operation. The line integrates flexo printing, creasing and slotting, die cutting, folding, gluing, and automatic bundling. With one-time feeding of corrugated sheets, the line enables continuous box production and directly produces RSC cartons and custom die-cut boxes. It delivers a fully automated process from corrugated sheets to finished boxes.
Based on customers' box sizes, production capacity, and production needs, AGICO PAPER offers different models of corrugated flexo folder gluers.

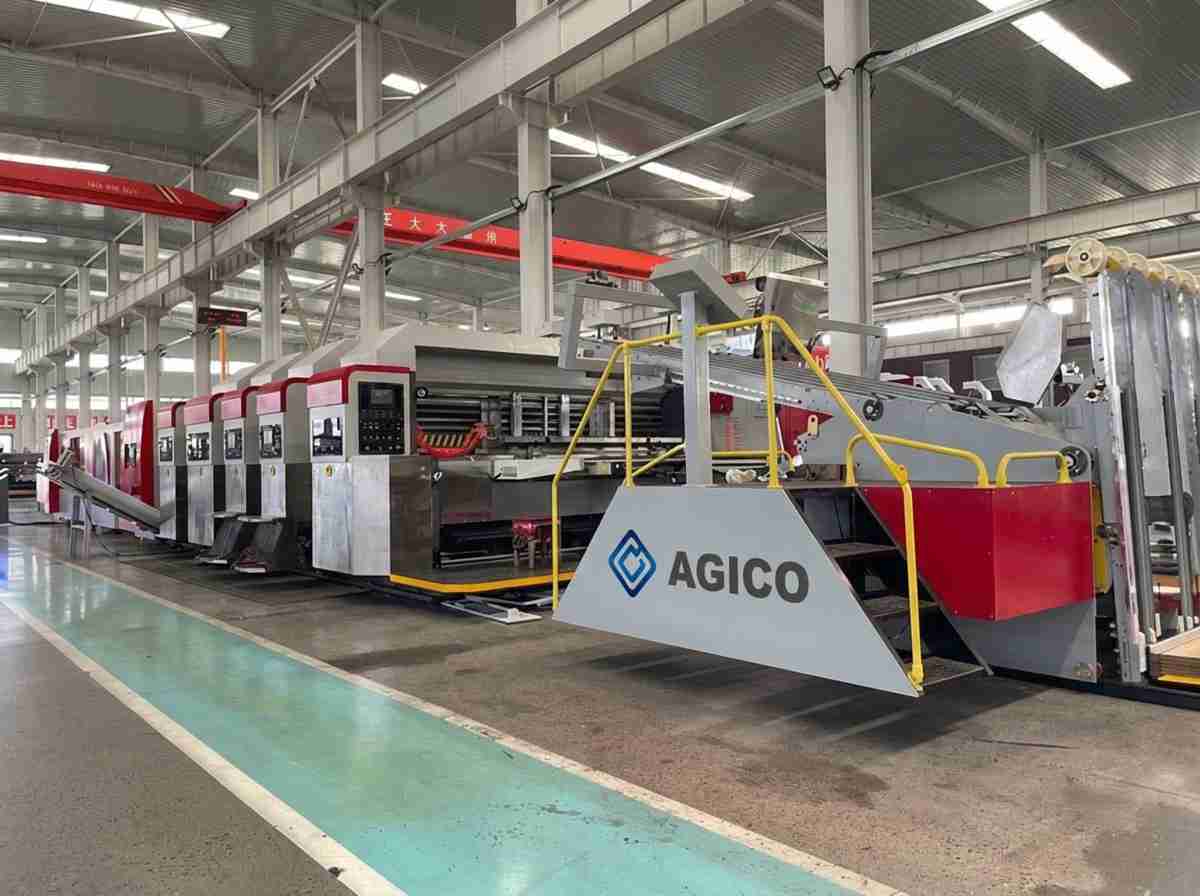

This series is designed for large-format boxes and high-volume production. Its maximum design speed can reach 350 sheets/min. This machine is suitable for large box plants handling high-volume orders.

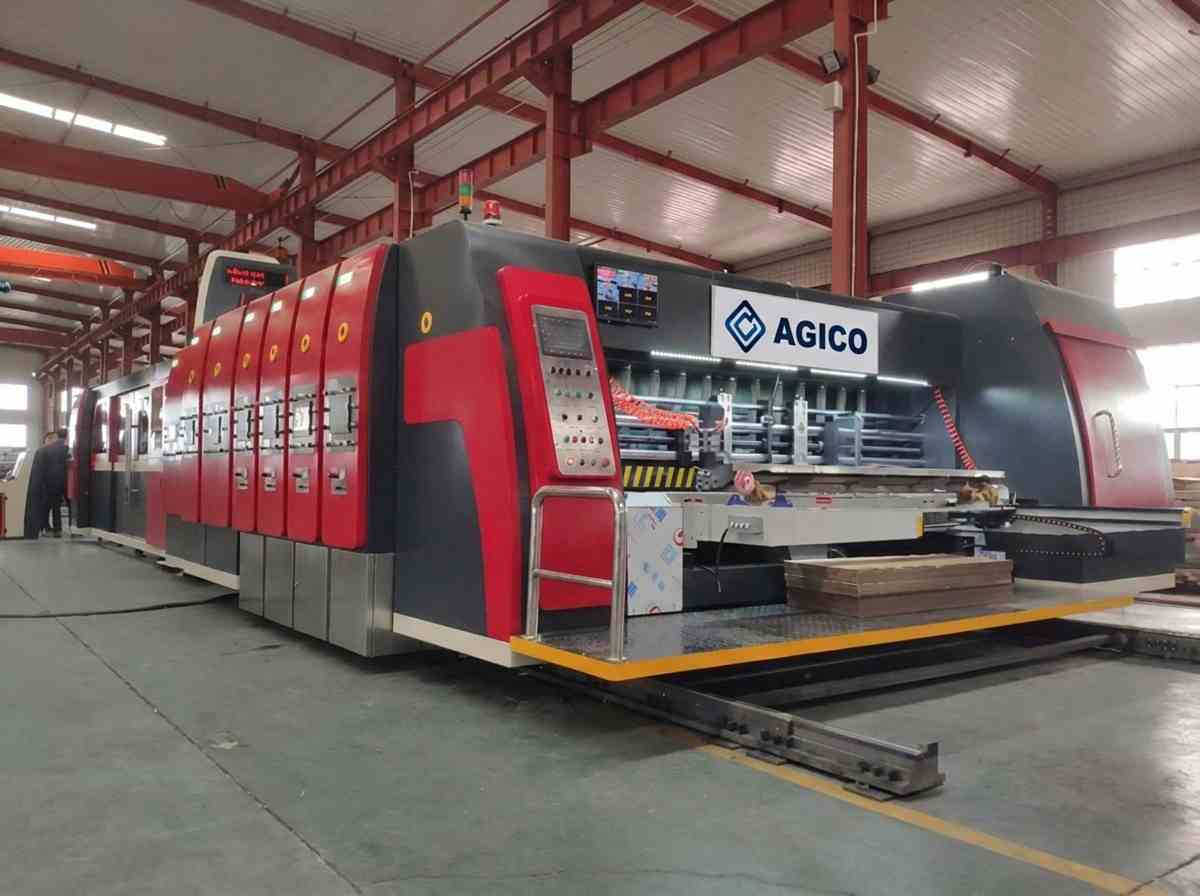

The HS-B Series is a standard high-speed line. It has a maximum design speed of 300 sheets/min and offers fast production speed. With a complete range of models, it is suitable for most medium and large box plants.

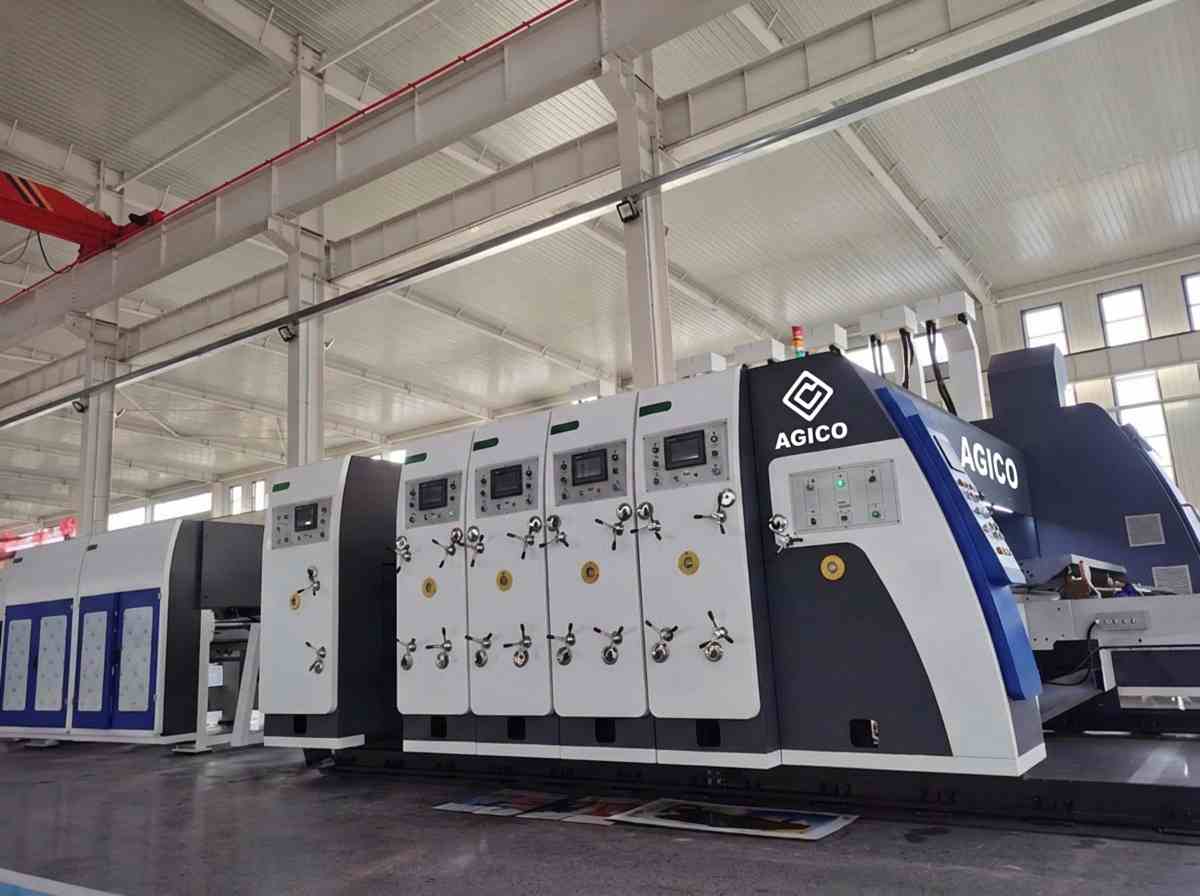

The HS-C Series is an economical option with a maximum design speed of 220 sheets/min. It has simple operation, quick job changeover, and a lower entry cost. These advantages make it suitable for small and medium-sized box plants.
AGICO PAPER equipment uses a continuous automated process. After the corrugated board is fed in, it completes each processing step in sequence. The process mainly includes the following steps.
1. Sheet Feeding
First, place the corrugated board in the feeding area. The machine uses leading-edge feeding to move the board smoothly. At the same time, the machine uses brushes and a dust removal fan to clean paper scraps from the board surface. This helps avoid paper scraps affecting the next process.
2. Flexo Printing
The corrugated board passes through the flexo printing unit. The unit prints patterns and text on the top surface. A hot or cold air system quickly dries the ink.
3. Slotting & Die Cutting
The board first passes through the creasing wheels to form folding lines. The slotting knives then cut the slots and flaps. The die-cutting knives cut handle holes or custom shapes.
4. Folding & Gluing
The servo motor and vacuum suction system control the board feeding and folding. It automatically folds along the creasing lines. The anilox glue roller applies glue evenly. The folding parts are then pressed together to form the box.
5. Counting & Bundling
Finally, the finished boxes are aligned and counted automatically. They are then arranged neatly and sent to the bundling machine. The machine bundles the boxes and discharges them for easy packing and stacking.
The high-speed flexo folder gluer consists of multiple functional units. Each unit completes different processes and works together for continuous box production.

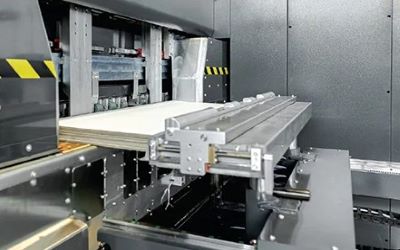

Feeding Unit
The unit feeds corrugated board smoothly.

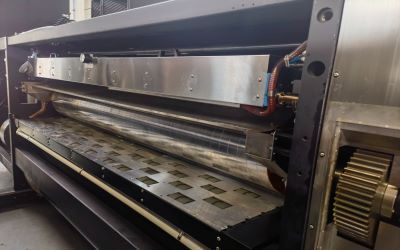

Flexo Printing Unit
It prints patterns and text on the board surface.

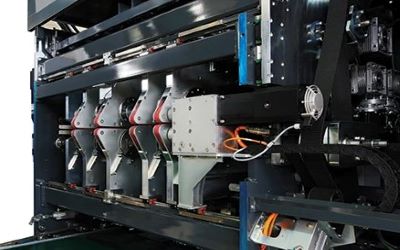

Creasing & Slotting Unit
The unit creates folding lines and cuts box flaps.

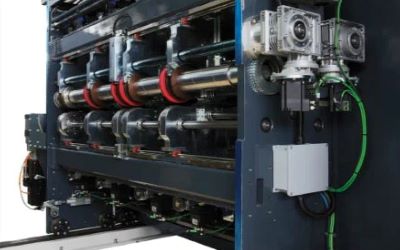

Die Cutting Unit
It cuts handle holes and custom box shapes.

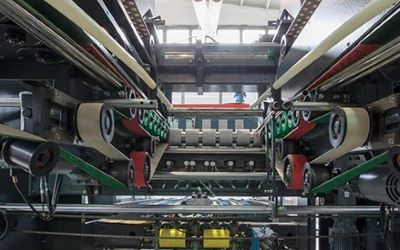

Folding & Gluing Unit
The unit folds and glues the board into finished boxes.

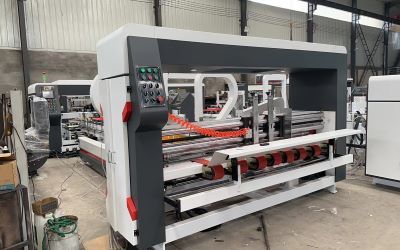

Counter & Delivery Unit
It counts and arranges finished boxes.
| Parameter | HS-A Series | HS-B Series | HS-C Series |
|---|---|---|---|
| Positioning | Large-Format High-Capacity | Standard High-Speed | Economical Configuration |
| Design Speed Range | 100–350 pcs/min | 220–300 pcs/min | 200–220 pcs/min |
| Number of Models | 7 Models | 4 Models | 4 Models |
| Max. Feeding Size | 2200 × 4500 mm (2245 Model) | 1200 × 2800 mm (1228 Model) | 1200 × 2600 mm (1226 Model) |
| Model | 920 | 924 | 1224 | 1228 | 1628 | 1636 | 2245 |
|---|---|---|---|---|---|---|---|
| Max. design speed (pcs/min) | 350 | 300 | 280 | 250 | 200 | 180 | 100 |
| Working speed (pcs/min) | 0-300 | 0-280 | 0-250 | 0-220 | 0-180 | 0-150 | 0-80 |
| Max. feeding size (mm) | 900×2000 | 900×2000 | 1200×2400 | 1200×2800 | 1600×2800 | 1600×3600 | 2200×4500 |
| Skip feeding size (mm) | 1000×2000 | 1000×2000 | 1600×2400 | 1600×2800 | 1900×2800 | 1900×2800 | 2500×4500 |
| Max. printing size (mm) | 850×1950 | 850×1950 | 1150×2350 | 1150×2750 | 1550×2750 | 1550×2600 | 2100×4500 |
| Min. feeding size (mm) | 300×765 | 300×765 | 360×785 | 360×785 | 450×850 | 450×850 | 600×900 |
| Min. fold size (mm) | 240×120 | 240×120 | 250×120 | 250×120 | 270×120 | 270×120 | 300×140 |
| Standard printing plate thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Max. die-cutting size (mm) | 850×1950 | 850×1950 | 1150×2350 | 1150×2750 | 1550×2750 | 1550×3550 | 2100×4500 |
| Model | 920 | 924 | 1224 | 1228 |
|---|---|---|---|---|
| Max. design speed (pcs/min) | 300 | 280 | 250 | 220 |
| Working speed (pcs/min) | 0-280 | 0-250 | 0-200 | 0-180 |
| Max. feeding size (mm) | 900×2000 | 900×2400 | 1200×2400 | 1200×2800 |
| Skip feeding size (mm) | 850×1950 | 850×2350 | 1150×2350 | 1150×2750 |
| Max. printing size (mm) | 850×1950 | 850×2250 | 1150×2350 | 1150×2750 |
| Min. feeding size (mm) | 300×765 | 300×765 | 360×785 | 360×785 |
| Min. fold size (mm) | 240×120 | 240×120 | 250×120 | 250×120 |
| Standard printing plate thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 |
| Model | 920 | 924 | 1224 | 1226 |
|---|---|---|---|---|
| Max. design speed (pcs/min) | 220 | 200 | 200 | 200 |
| Working speed (pcs/min) | 0-200 | 0-180 | 0-160 | 0-160 |
| Max. feeding size (mm) | 900×2000 | 900×2400 | 1200×2400 | 1200×2600 |
| Skip feeding size (mm) | 850×1800 | 850×2200 | 1150×2350 | 1150×2550 |
| Max. printing size (mm) | 850×1950 | 850×2200 | 1150×2200 | 1150×2450 |
| Min. feeding size (mm) | 300×765 | 300×765 | 360×785 | 360×785 |
| Min. fold size (mm) | 240×120 | 240×120 | 250×120 | 250×120 |
| Standard printing plate thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 |
Note: (All sizes can be customized according to customer requirements)
Quick Changeover
The whole line uses computer control. The box parameters can be called up directly, so adjustment is fast. It can flexibly produce boxes in different sizes.
Less Labor
AGICO PAPER equipment has a high level of automation and only needs a few operators. You can reduce the number of workers and lower your labor costs.
Stable Quality
The corrugated board is processed in one pass. This can reduce the size deviations caused by manual handling. You can also get clear printing, neat box shapes, and consistent box sizes.
High-Speed Production
The machine can run continuously for a long time, with a maximum speed of 350 sheets/min. You can handle high-volume box orders with much higher production efficiency than separate machines.
AGICO PAPER FFG line can meet different production needs. It is suitable for packaging in e-commerce logistics, industrial warehousing, home appliances and furniture, food, and consumer goods. It also meets the high-precision production requirements of regular slotted cartons.
A flexo folder gluer is an automatic machine for corrugated box production. It is also called an FFG line. It combines multiple box-making processes into one line.
A flexo folder gluer can complete multiple processes, including flexo printing, creasing, slotting, die cutting, folding, and gluing. Some models also include counting and bundling.
No. Different models have different configurations. Some models only include slotting and folding. Others include die cutting for custom-shaped boxes.
The price depends on the machine configuration, speed, size, and automation level. Different needs require different configurations. AGICO PAPER can recommend a suitable machine based on your requirements.
Yes. AGICO PAPER provides installation guidance, technical support, and spare parts service. Our team can help you set up and operate the machine after delivery.
REQUEST A CONFIGURATION
Tell us what you need to produce and the basic line requirements. Use the inquiry form to send the details.
PLAN YOUR EQUIPMENT
Complete the form with your contact details and equipment requirements. Use the message field to share the points below.
Equipment you need
A complete production line, an individual machine, or an upgrade to your existing equipment.
Your product specifications
Board ply and flute type, working width, box dimensions, or printing and converting requirements, where known.
Output and project details
Your target production capacity, installation country, and any workshop space or project requirements.
Not sure which machine to choose? Describe your product and what you want to achieve. Share the details you know to get started.
