Longitudinal slitting and creasing for corrugated board production.
Explore machine types

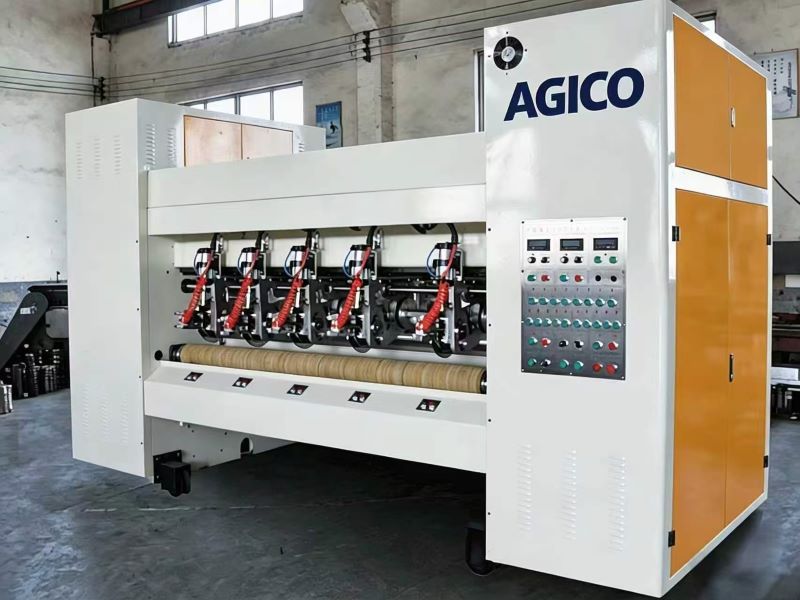

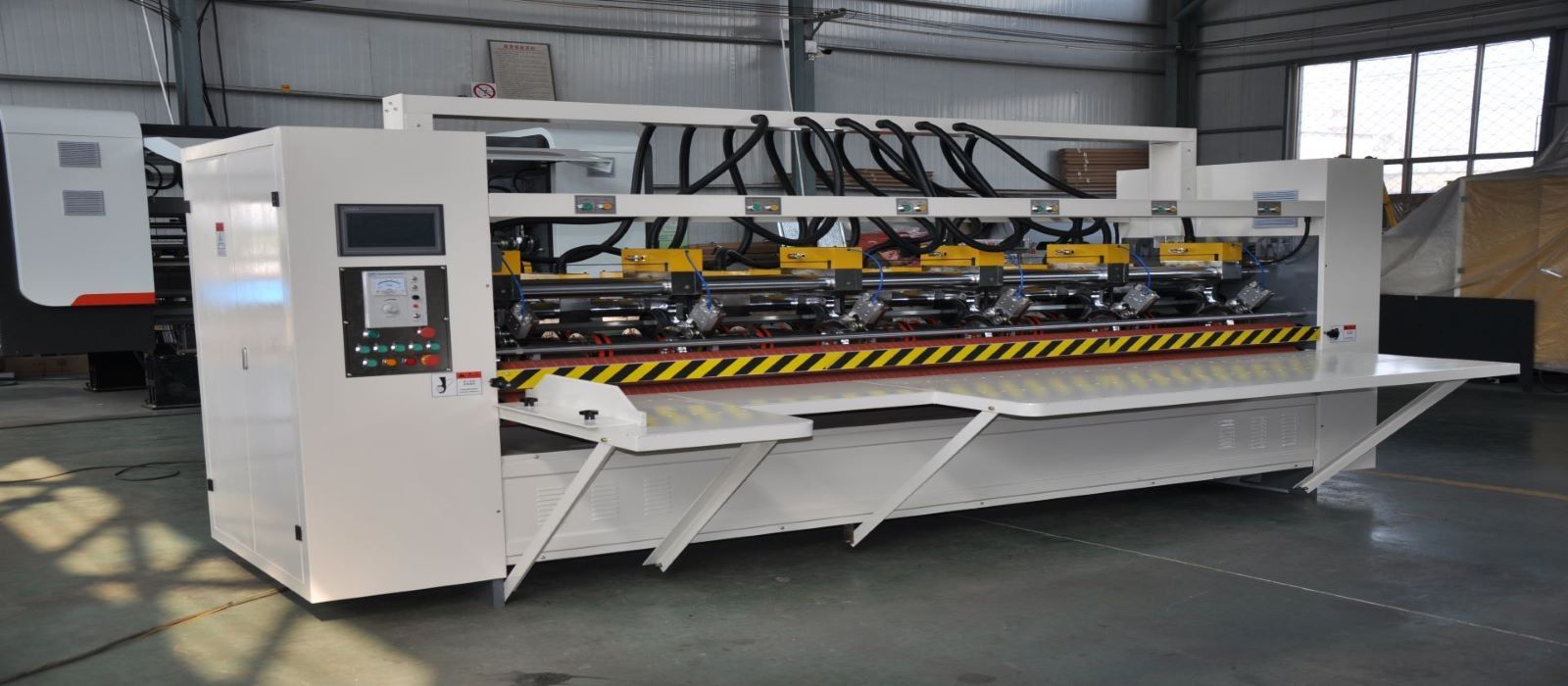

The thin-blade slitter-scorer is an important machine in a corrugated board production line. It is used for slitting and creasing corrugated board. The machine is located between the double facer and the NC cutter at the back end of the corrugator line. Longitudinal slitting and creasing allow you to process the board for different carton sizes. The processed board is then ready for cross-cutting, folding, and carton forming.
The machine produces clean cuts and clear creasing lines. It helps reduce burrs and crease cracking. This improves carton quality and production efficiency.
As a professional supplier of corrugated machinery, AGICO PAPER offers various configurations of corrugated slitter-scorer machines to suit different production speeds, automation levels, and budgets. Our range includes high-speed NC Servo, Electric Adjustment, and Standard and Lift-Type models. You can choose the right model based on your actual production needs.

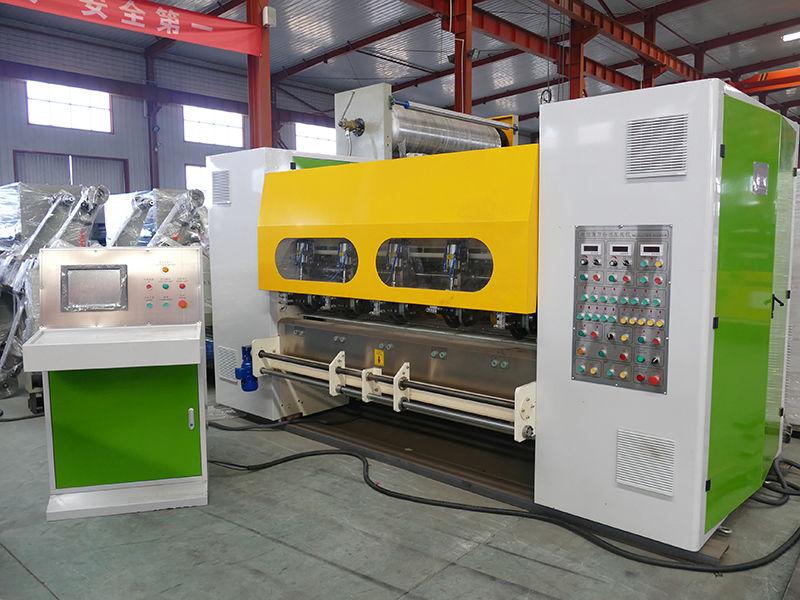

The machine provides precise slitting and creasing with a high level of automation. It is suitable for corrugated box factories with high production speeds and large production volumes. Different models are available for different working widths and production needs. With the PLC system, job changeover takes just 3–8 seconds. Meanwhile, the slitter scorer adjusts the slitting and creasing positions. The blades can also be sharpened during operation. This reduces manual work and improves production efficiency.
To learn more about this machine, you can refer to the specifications below.
| Specification | AG-NC1800 (NC Servo Drive) |
|---|---|
| Design Speed | 250 m/min |
| Working Width | 1800 mm |
| Min Slitting Width | 140 mm |
| Min Scoring Width | 135 mm |
| Scoring Height | 0 - 12 mm |
| Running Power | 7.9 kW |
| Blade Spec | Φ 200 × 122 × 1.2 mm |
| Blades & Scorers | 5 blades, 8 scoring |
| Order Storage | 999 orders (3-8s fast changeover) |

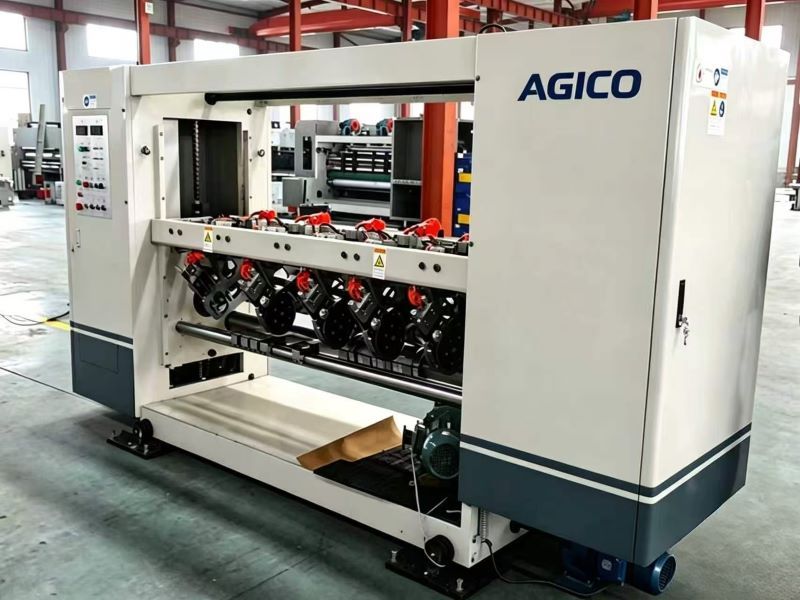

For standard-speed production, the Electric Adjustment Thin-Blade Slitter Scorer offers easier blade adjustment. The machine supports working widths of 1800–2800 mm, with electric adjustment of the slitting knives and creasing wheels. It is also equipped with an automatic blade sharpener to reduce manual work during production. This makes it suitable for regular corrugated board production.
To learn more about this machine, you can refer to the specifications below.
| Specification | AG-BF2000 | AG-BF2300 | AG-BF2500 |
|---|---|---|---|
| Working Width | 1800 mm | 2100 mm | 2300 mm |
| Min Slitting Width | 140 mm | 140 mm | 140 mm |
| Min Scoring Width | 80 mm | 80 mm | 80 mm |
| Scoring Height | 0 - 10 mm | 0 - 12 mm | 0 - 12 mm |
| Running Power | 4.0 kW | 4.0 kW | 4.0 kW |
| Blade Spec | Φ 200 × 122 × 1.2 mm | Φ 200 × 122 × 1.2 mm | Φ 200 × 122 × 1.2 mm |
| Blades & Scorers | 4 blades, 6 scoring / 5 blades 8 scoring | 4 blades 6 scoring / 5 blades 8 scoring | 4 blades 6 scoring / 5 blades 8 scoring |

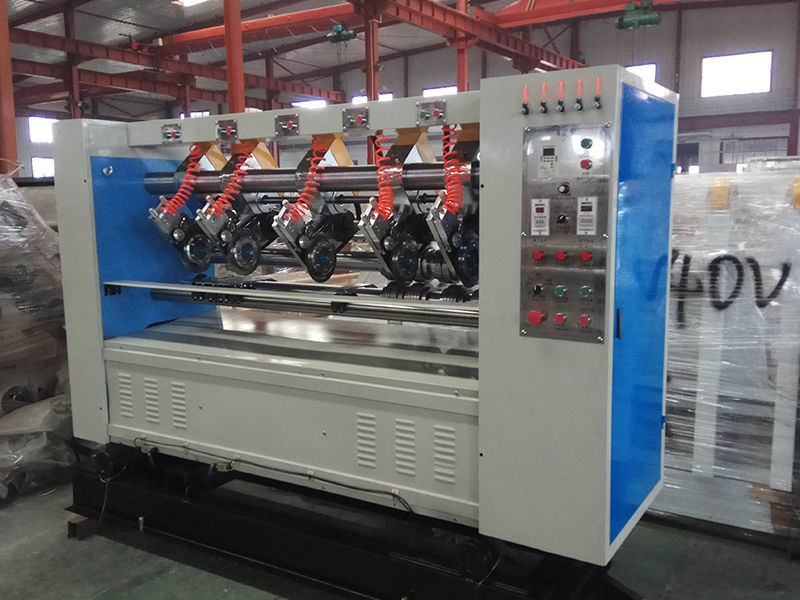

If your production needs are simple and you are looking for a more economical option, AGICO PAPER also offers standard thin-blade slitter scorers. The machine has a simple structure and easy manual operation for basic slitting and creasing. Manual adjustment is simple and quick. It allows you to set different specifications easily. It also helps reduce material waste during setup. This makes it a good choice for carton factories with a limited initial budget and a preference for simple operation.
To learn more about this machine, you can refer to the specifications below.
| Specification | AG-SZ2000 | AG-SZ2300 | AG-SZ2600 |
|---|---|---|---|
| Max Speed | 150 m/min | 150 m/min | 150 m/min |
| Working Width | 1800 mm | 2100 mm | 2400 mm |
| Min Slitting Width | 140 mm | 140 mm | 140 mm |
| Min Scoring Width | 30 mm | 30 mm | 30 mm |
| Scoring Height | 0 - 10 mm | 0 - 10 mm | 0 - 10 mm |
| Running Power | 8.5 kW | 8.5 kW | 8.5 kW |
| Blade Spec | Φ 200 × 122 × 1.2 mm | Φ 200 × 122 × 1.2 mm | Φ 200 × 122 × 1.2 mm |
| Blades & Scorers | 3 blades 4 scoring / 4 blades 6 scoring / 5 blades 8 scoring | 3 blades 4 scoring / 4 blades 6 scoring / 5 blades 8 scoring | 3 blades 4 scoring / 4 blades 6 scoring / 5 blades 8 scoring |
The machine uses thin blades for longitudinal slitting and creasing wheels for creasing wide corrugated board. The process consists of three steps: feeding and pre-creasing, thin-blade slitting, and creasing. The machine then cuts the board into the required widths and creates clear creasing lines for folding.
Step 1: Feeding and Pre-Creasing

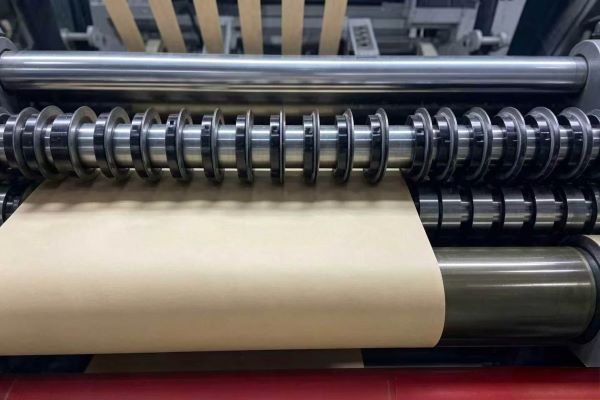

After the corrugated board enters the equipment, the board is smoothly fed in by the feed and pull rollers and embossing wheels, ensuring it passes through at a consistent speed. The pre-creasing wheels pre-condition the board and relieve internal stress. This helps reduce burst corners and cracking during the subsequent creasing process.
Step 2: Thin-Blade Slitting
The thin blades slit the board longitudinally at the preset positions and trim the edges, producing the required board widths.

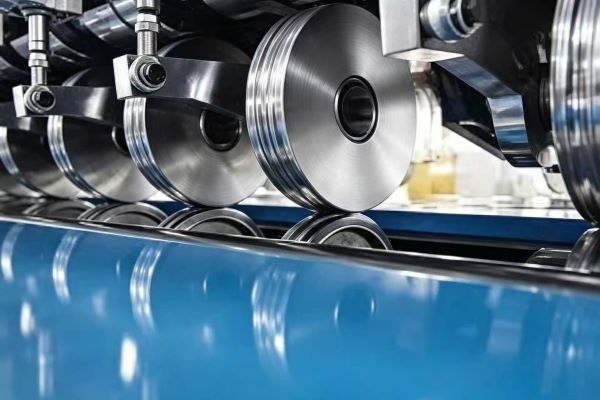

Step 3: Creasing
The creasing wheels press longitudinal creasing lines at the preset positions. These lines provide accurate folding positions for carton forming. AGICO PAPER equipment supports different creasing patterns for different board materials and layers. The creasing pattern can be switched electrically to meet different production needs.
Precision & Quality
AGICO PAPER uses a PLC touchscreen control system. It supports precise slitting and creasing. Operators can monitor cutting parameters in real time. This helps maintain consistent cutting quality and smooth edges.
Durable Performance

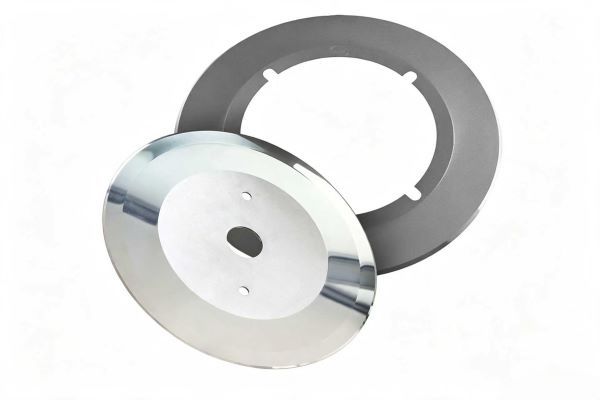

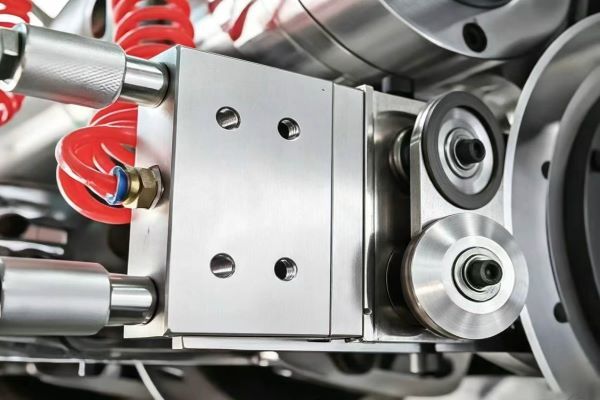

Our machine is made with durable materials and advanced technology. It uses sharp and durable tungsten carbide alloy blades with a service life of more than 8 million meters. This helps the machine maintain stable performance over time. The machine also uses imported synchronous belts. They provide precise transmission, lower noise, and longer service life.

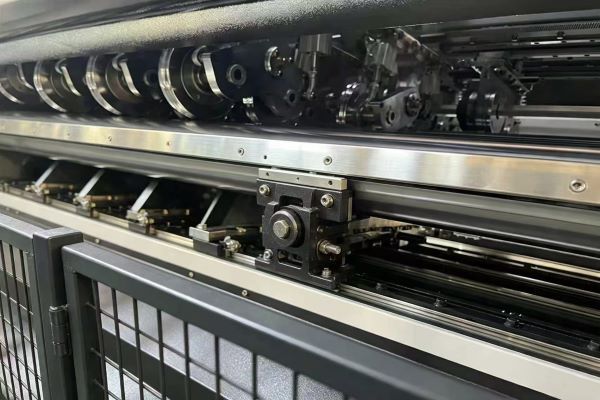

Easy Electric Adjustment
The equipment adopts a simple adjustment system to ensure stable operation and easy adjustment. It allows quick specification changes to meet different production needs.
Reliable Quality & Service
Each AGICO PAPER machine must undergo strict running tests and precision checks before delivery. We also provide long-term spare parts supply and professional technical support. This helps keep your production line running smoothly and efficiently.
As an important machine in the corrugated board production line, this equipment is suitable for a wide range of production needs. It can be used for corrugated box production, printed and premium packaging, industrial paperboard processing, and more.

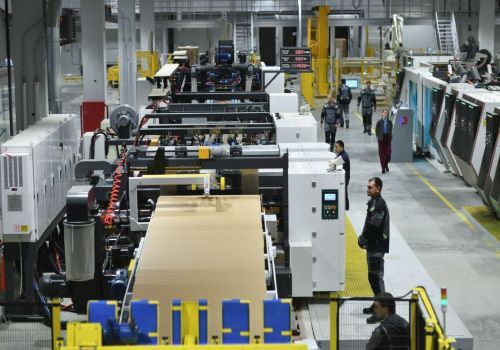

Corrugated Box Production
For slitting and creasing 3-ply, 5-ply, and 7-ply board.
Printed and Premium Packaging
For producing clean-cut, precisely creased printed cartons.
Industrial Paperboard Processing
For protective packaging and inserts for industrial products.
