Mill Roll Stand and automatic splicer
This unit can continuously feed the corrugated paper with different widths and weights. It also finishes automatic roll changing without stopping the production line.

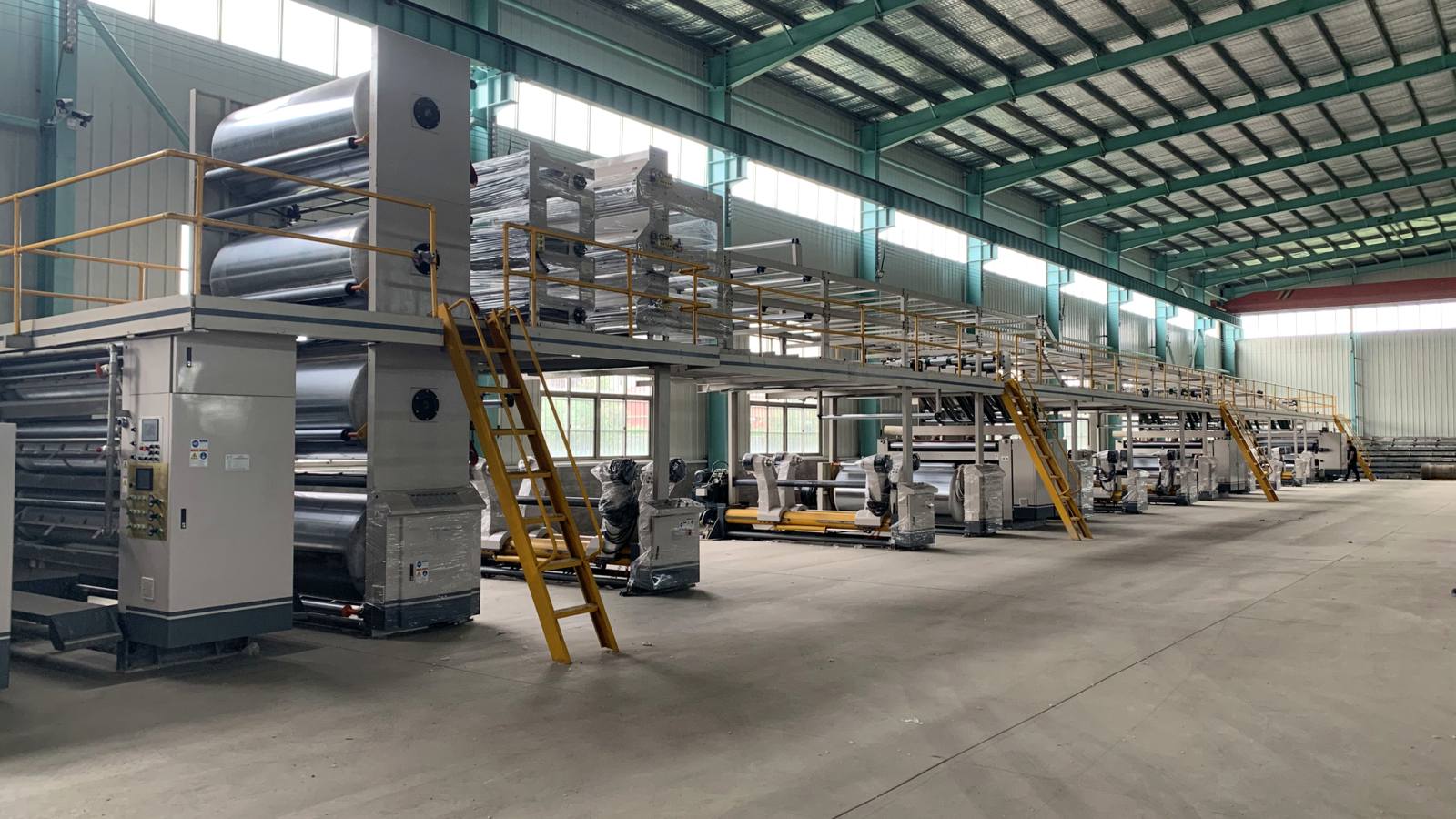

7-Ply Corrugated Board Making Machine
Triple-wall construction. Heavy-duty packaging.

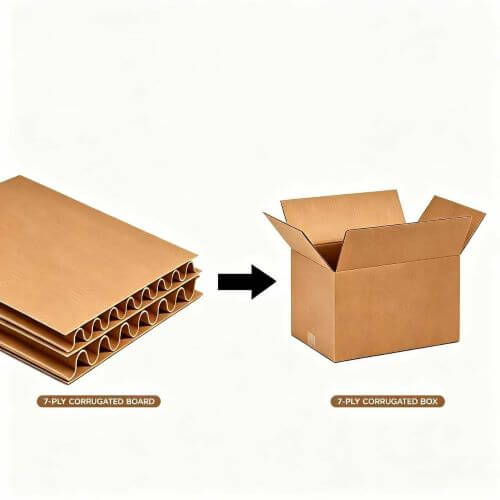

Triple-wall corrugated board
The 7-ply corrugated board making machine is a heavy-duty industrial automated corrugating system for the corrugated board production line. This corrugator line can produce 7-layer high-strength composite cardboard, and the 7-ply corrugated board structure consists of: outer liner, fluting medium, intermediate liner, fluting medium, intermediate liner, fluting medium, and inner liner. With flexible configuration options, this line can support different corrugated board production requirements.
This 7-ply automatic corrugator machine produces the board with high edge crush strength and excellent cushioning performance. It can prevent the box from deforming when stacked for a long time. The 7-ply corrugated line is widely used for 7-ply corrugated box applications. For example, heavy machinery, automotive components, and large appliances in heavy-duty packaging applications.
Working Principle and Process Flow of 7-Ply Corrugator Line

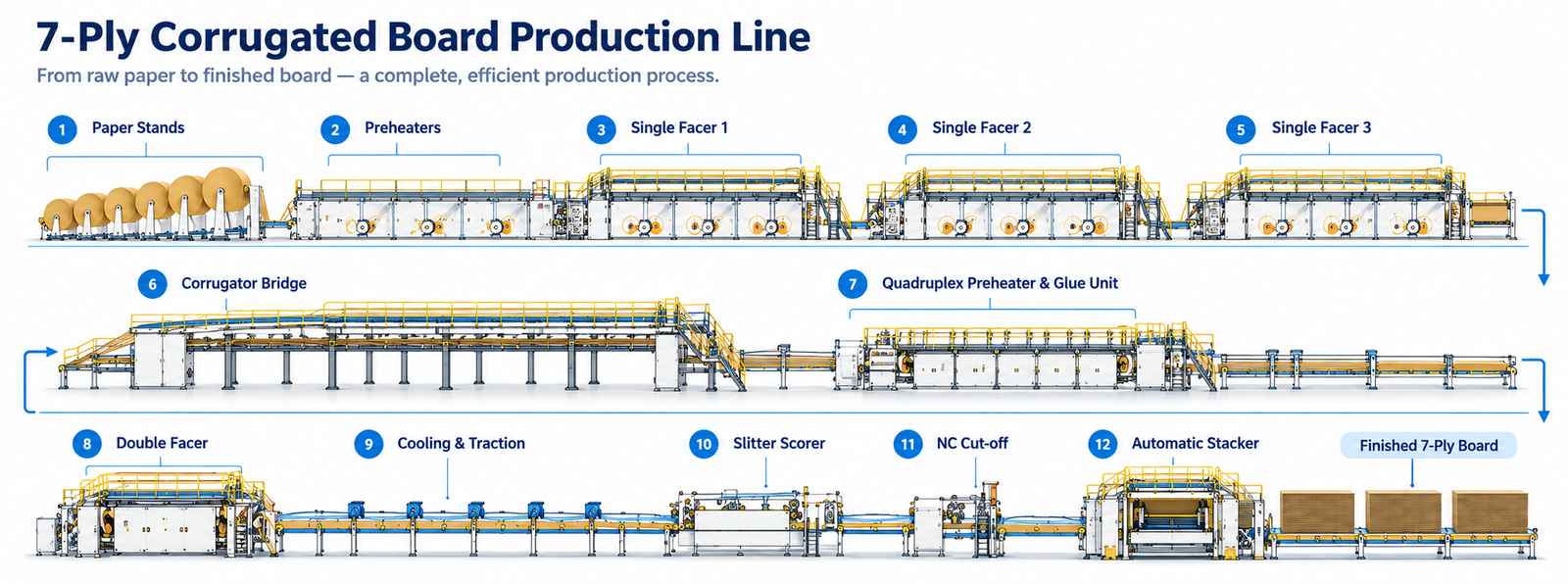

The working process of a 7-ply corrugated board production line is similar to that of the 3-ply corrugated line and the 5-ply corrugated line. The process uses corrugating rolls to form the medium and a glue machine to bond the liner and medium. Then, by laminating, heating, pressing, slitting, and stacking, the corrugated board is produced.
But there is a difference: the triple-wall corrugator line uses multiple single-facer machines and multiple lamination processes. During the lamination process, this line needs a stronger pressure system and more precise temperature control. These features help to reduce bonding failures and blistering.

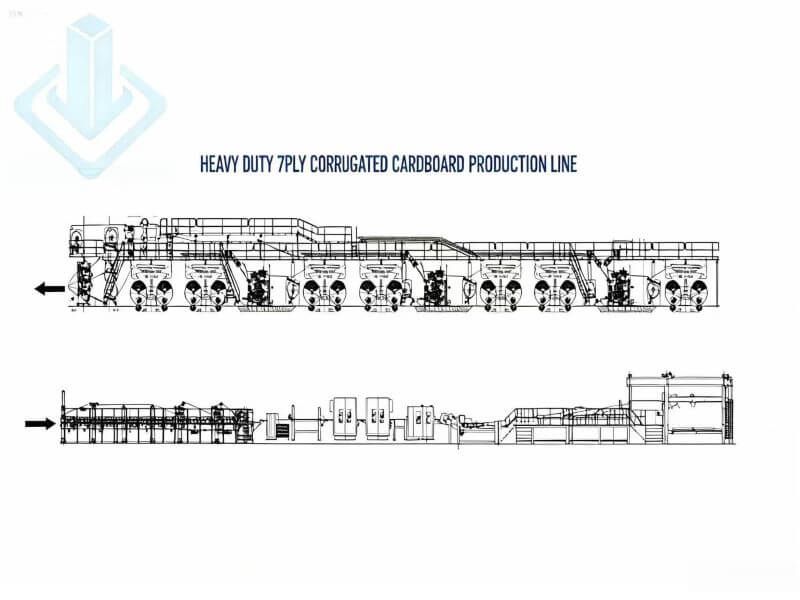

Main Configurations of a 7-Ply Automatic Corrugator Line
In terms of equipment composition, the automatic 7-ply corrugated production system includes the following core units.
Preheating
Controls the corrugated base paper to adjust its moisture and temperature, and ensures the bonding quality.
Single facer
These units use corrugating rolls to form the medium paper and bond it with the liner paper.
Multi-Stage Laminating Units
Multi-stage lamination of corrugated layers to form a 7-ply triple-wall structure.
Corrugated double facer
The hot plates and rollers heat and press the board to make sure the glue bonds well and improve the board's strength.
Slitter Scorer and Cut-Off Machine
According to the order sizes, accurate cutting.
Automatic Stacking
Automatic stacker for the corrugated board.
Central Control System
Using the PLC, this production line realizes parameter setting, operation monitoring, fault diagnosis, and data recording.
Technical Specifications of 7-Ply Corrugator Line
| Item | Specification |
|---|---|
| Model | AG-WJ2200-250-7 Ply |
| Design Speed | 250m /min |
| Economical Speed | 180-220 m/min |
| Max. Working Width | 2200 mm |
| Production Layers | 3 / 5 / 7 Ply |
| Total Length of Machine | Approx. 68 Meters |
| Total Installed Power | ~150 kW (Excluding heating system) |
| Heating Method | High-Efficiency Steam Heating |
| Steam Consumption | 2.5 - 3.5 T/h |
| Working Air Pressure | 0.6 - 0.9 MPa |
| Standard Flute Types | A, B, C, E, F (Optional) |
| Paper Grammage Range | Top Paper: 100- 180 g; Medium Paper: 80- 160 g |
| Control System | Full NC Computerized Control (PLC + Touch Screen) |
| Cutting Precision | ±1 mm |
Advantages of High-Speed 7-Ply Corrugator Line
Flexible Production Capability
The AGICO PAPER 7-ply corrugator line can produce high-strength composite corrugated board. This line produces corrugated board that can meet different load-bearing requirements.
Highly Automated Operation
AGICO PAPER’s production line uses a PLC control system. This feature enables automatic operation during production, reducing labor costs. By using automatic feeding systems, automatic stacking, and an automatic cutting machine, these units help to improve production efficiency.
Intelligent Data Monitoring
The 7-ply corrugated board production line also uses intelligent technology. It monitors some parameters like temperature, moisture, and pressure in real time, helping keep the production process stable and maintain consistent product quality.
Green & Export Compliance
The triple-wall corrugated board line produces corrugated board that can be recycled. It aligns with the global green packaging trend. The box made of corrugated board can replace the wooden box. No fumigation is required, meeting international export environmental standards. Compared with traditional wooden packaging, corrugated board packaging is lighter, recyclable, and easier to handle, making it suitable for export transportation. These advantages can enhance the market competitiveness of export enterprises.
Application of High-Speed 7-Ply Corrugator Line
The triple-wall corrugated board is used to meet heavy-duty packaging requirements. According to different needs, this automatic production line can customize different flute type combinations, gram weight, and thickness. It can meet the special requirements of various industries.
In actual applications, the 7-ply corrugated board is used for large household appliances, mechanical equipment, auto parts, electronic products, and precision instruments. Because these corrugated boards can reduce damage caused by shock and impact during transport.
Compared with 5-ply corrugated board, 7-ply corrugated board provides higher strength and better cushioning performance for heavy-duty packaging applications.

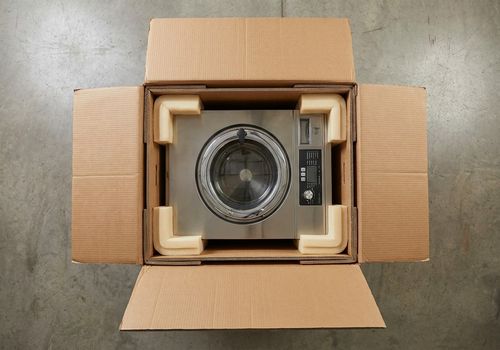

Large Appliance Packaging

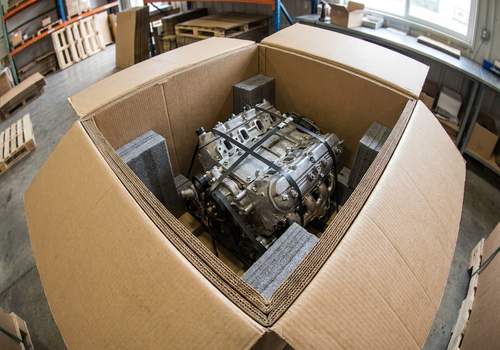

Automotive Parts Packaging
Export Packaging
Why Choose AGICO as a 7-Ply Corrugator Manufacturer
Strong Manufacturing Capability
AGICO PAPER has 200 advanced pieces of equipment, including machining centers, CNC machines, and CNC drilling machines. We also design high-speed corrugated board production lines, printing and folder-gluer lines, and so on. We have the capacity to produce 200 sets of integrated carton production lines annually, with guaranteed delivery time and quality.
Certified Quality Assurance
We also have a technology research and development centre. And successfully passed the ISO9001 certification. AGICO PAPER uses strict factory inspections and mature technologies, ensuring every piece of equipment's service life and stability.
Global Export Experience

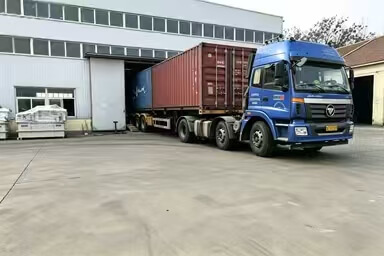

Our machinery is sent to the United States, Spain, Austria, Italy, Germany, and other countries. We have received high recognition from our customers.
