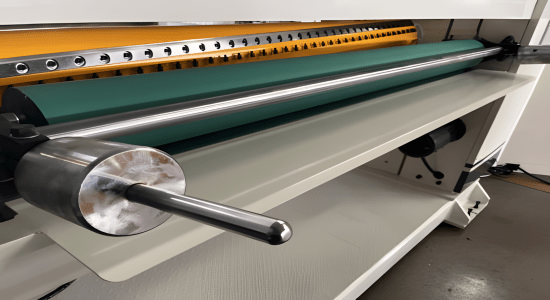

- Corrugated Board Infeed
After the corrugated board comes out of the thin blade slitter-scorer, it passes through the infeed mechanism and continuously enters the cut-off machine, maintaining a stable conveying process.
NC Cut-off Machine for Corrugated Board
Cross-cutting, synchronized with the board.
Precision at the dry end

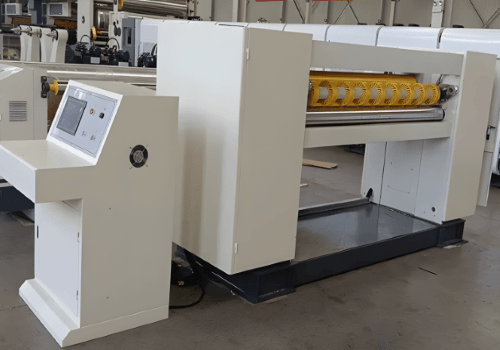

The NC cut-off machine is an important machine on the dry end of the corrugated board production line. It is primarily installed between the slitter-scorer and the stacker machine. Based on the preset sheet length, the machine cuts the continuously conveyed corrugated board crosswise, preparing it for the subsequent carton-making process. AGICO PAPER NC cut-off machine uses a PLC control system and a servo drive, ensuring precise, stable cutting. We also offer NC cutter machines with varying production speeds to meet diverse needs.
If you want to buy a new corrugator line or replace the old cut-off machine, you can learn about the AGICO PAPER NC cut-off machine. We can give you the right solution based on your cardboard specifications, production speed, and capacity requirements.
NC Cut-off Machine Configurations
According to the production speed and output requirements of the corrugated board line, AGICO PAPER offers single-knife and double-knife NC cut-off machines, with different models available to match different production speeds.

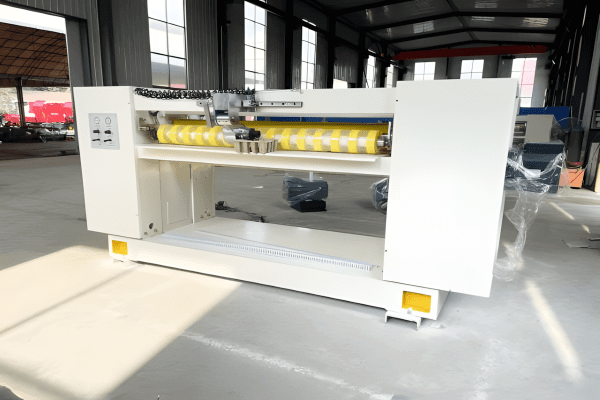

Single-Knife Cut-off Machine
The single-knife cut-off machine uses a single-knife cutting configuration. It is suitable for standard corrugated board production needs. According to the running speed of the production line, you can choose different speed options, such as 100 m/min, 150 m/min, and 250 m/min. The machine maintains stable continuous production while ensuring cutting accuracy.

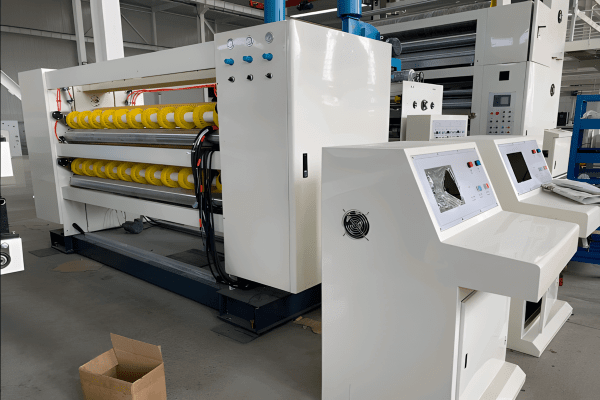

Double-Knife Cut-off Machine
The double-knife cut-off machine uses a double-knife cutting configuration. It can be selected based on the output requirements of the production line. If your production line requires higher output efficiency or needs to match a double-knife production configuration, you can consider this option.
Speed Options
In addition to those single-knife and double-knife configurations, the NC cutter machine can also be selected based on the production speed.
| Design Speed | Suitable For |
|---|---|
| 100 m/min | Lower-speed production lines |
| 150 m/min | Medium-speed production lines |
| 250 m/min | High-speed production lines |

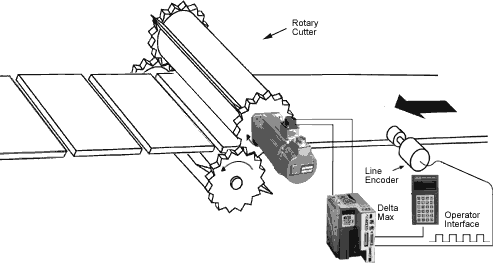

Working Principle of NC Cut-off Machine
By learning the machine's working principle, you can better understand how it maintains smooth cuts and accurate sheet dimensions at high speeds. The process can be divided into four steps.
Then, the control system automatically adjusts the cutting process based on the preset sheet length and production speed. It tracks the board speed to keep cutting synchronized with the production line.
3. Cross Cutting
The servo system drives the knife shaft to cut the board crosswise at the preset position. The helical knife design works together with the precision transmission. This makes the cutting process smoother and maintains stable cutting quality.
4. Corrugated Board Output
The cut sheets are conveyed by the outfeed belt and smoothly transferred to the stacker for subsequent collection and stacking.
Advantages of the NC Cutter Machine
High-Precision Cutting
AGICO PAPER NC cutter machine uses PLC control and a servo drive. It can automatically adjust the cutting process according to the board conveying speed. When cutting at a constant speed, the machine’s cutting accuracy can reach ±1 mm. This helps reduce board size deviation.

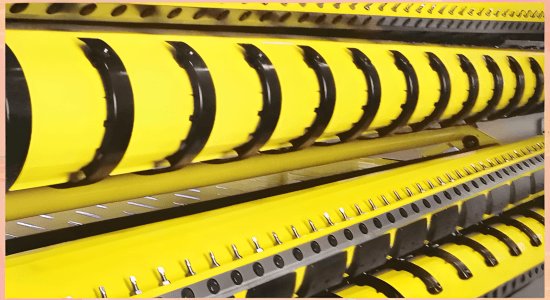

Helical Knife Shaft Cutting
Our machine uses the helical knife design to cut the board crosswise in a shearing-like way. The precision knife shaft and transmission system help reduce resistance during cutting. This makes the cutting process smoother and keeps clean cutting edges.

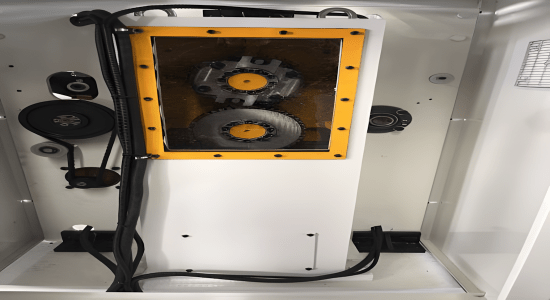

Stable Transmission System
The transmission system uses high-precision, high-rigidity ground gears and a lubrication system to ensure stable knife shaft operation. This precision mechanical structure helps you maintain consistent cutting accuracy during long-term continuous production.
Easy Order Management

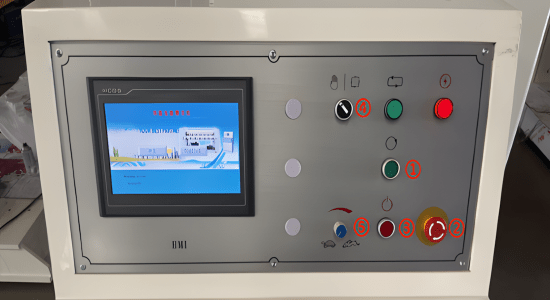

Different orders require different cutting lengths. You can save commonly used settings on the touch screen, with up to 200 order groups stored. When changing orders, you can quickly recall the corresponding settings, reducing manual adjustment time and making production changeovers easier.
Technical Parameters of NC Cut-off Machine
| Parameter | Specification |
|---|---|
| Design Speed | 100 / 150 / 250 m/min |
| Working Width | 1400–2500 mm |
| Cutting Length | 500–9999 mm |
| Cutting Accuracy | ±1 mm |
| Cut-off Type | Single / Double |
| Knife Type | Helical Knife |
| Control System | PLC |
| Drive System | Servo Motor |
| Order Storage | Up to 200 orders |
FAQ
What is an NC cut-off machine?
The NC cut-off machine is used for cutting the continuously conveyed corrugated board crosswise to the preset length. It uses a PLC control system and servo drive to achieve stable and precise cutting.
What is the difference between a single and double cut-off machine?
The single-knife cutter machine uses the single-knife cutting configuration. It is suitable for standard production needs. The double-knife cutter machine uses a double-knife configuration. It is designed for production lines requiring higher output efficiency.
How do I choose the right NC cut-off machine?
You can choose the right cut-off machine based on your production line speed, working width, cutting length, and paper output requirements.
What cutting accuracy can an NC cut-off machine achieve?
AGICO PAPER NC cut-off machine’s cutting accuracy can reach ±1 mm. It is suitable for producting the high accuracy requirements for cardboard dimensions.
