For 3-ply and 5-ply corrugated boxes
Some models can be customized for 7-ply board

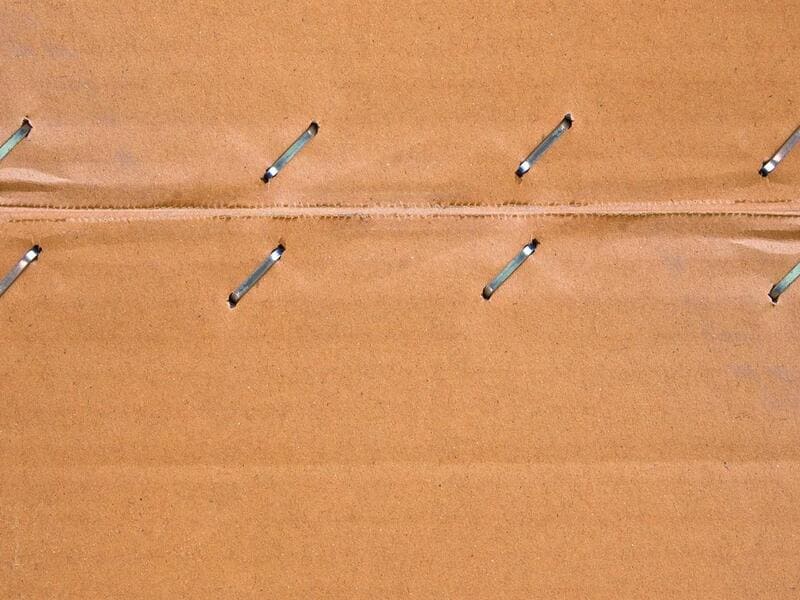

Metal stitching wire secures the overlapping flaps

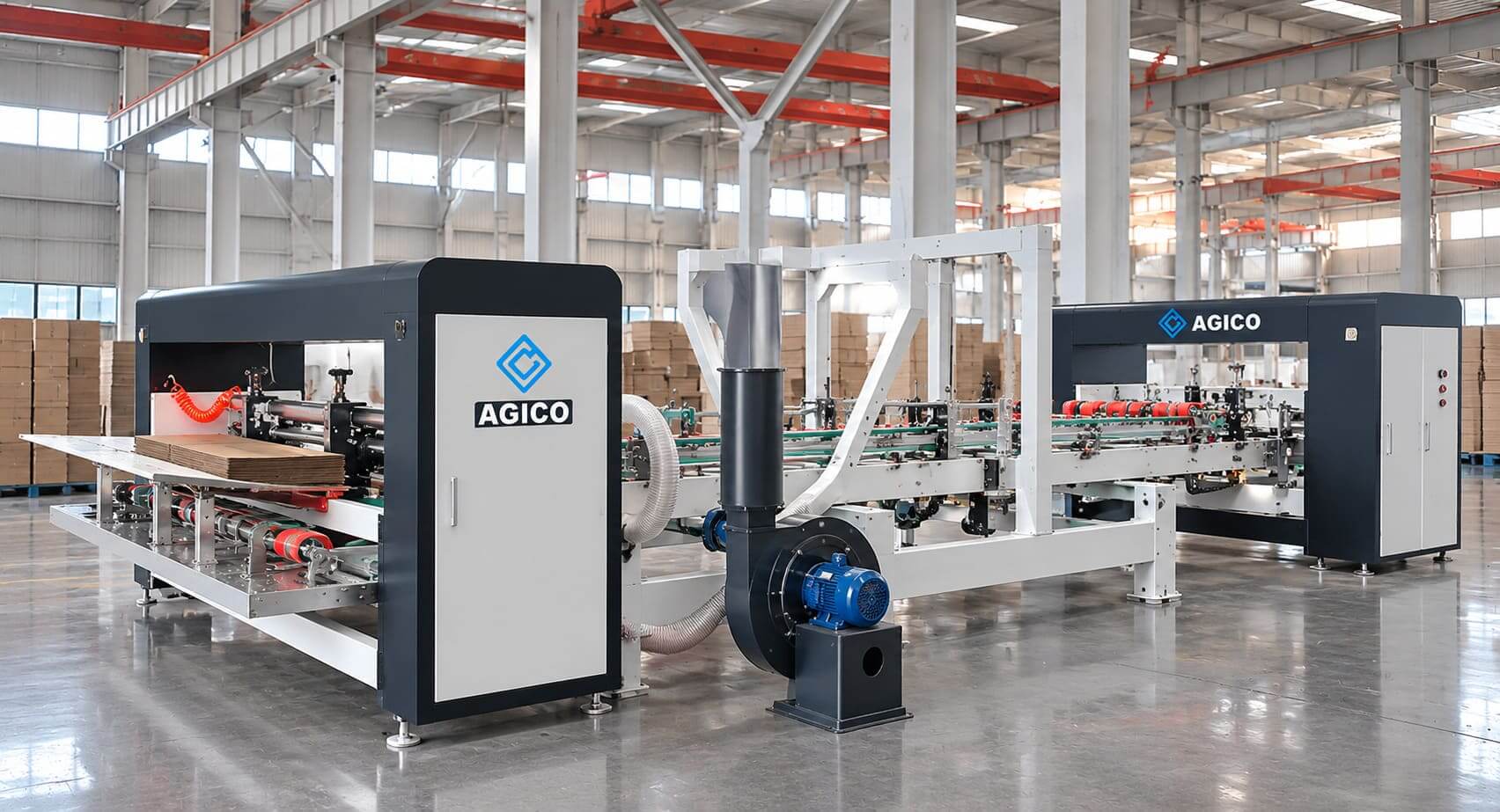

The corrugated box stitching machine is a converting machine for corrugated box making. The corrugated board goes through printing, slotting, and creasing processes to form a box blank. The box blank is folded along the creasing lines. The flaps overlap at the joint. The stitching head uses metal stitching wire to stitch the box and secure it. The machine is suitable for stitching boxes made from 3-ply corrugator line and 5-ply corrugator line. Some models can also be customized for board produced by a 7-ply corrugator line.
AGICO offers four types of corrugated box stitching machines. They include automatic, semi-automatic single head, semi-automatic twin head, and pedal-operated models.
The automatic carton box stitching machine is suitable for continuous carton production. It uses PLC control, touchscreen operation, and vacuum feeding with belt assistance for stable paper conveying. The stitching speed can reach 600 stitches/min, with an adjustable stitch pitch of 30–120 mm. If you want to know the automatic box stitching machine price, contact us now.
Features: Stable Feeding, Quick Setup

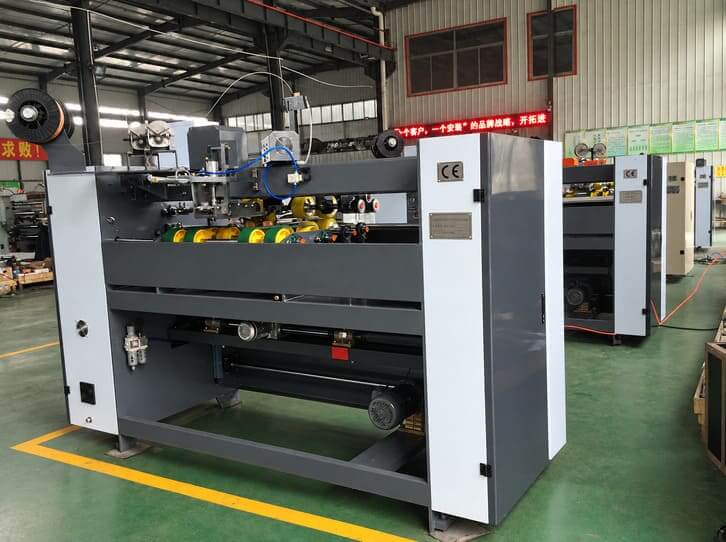

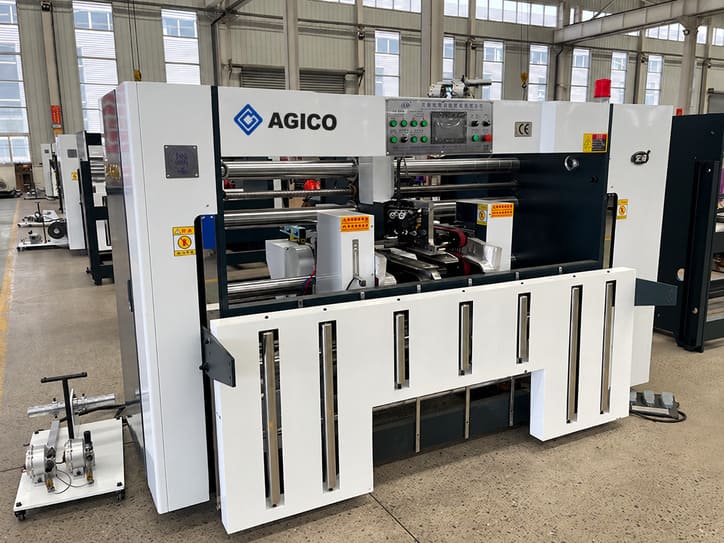

The semi-automatic single-head stitcher uses servo control for feeding and stitching. The stitch distance and stitch count can be adjusted. It is suitable for stitching cartons of different sizes.
Features: Servo Control, Flexible Stitching

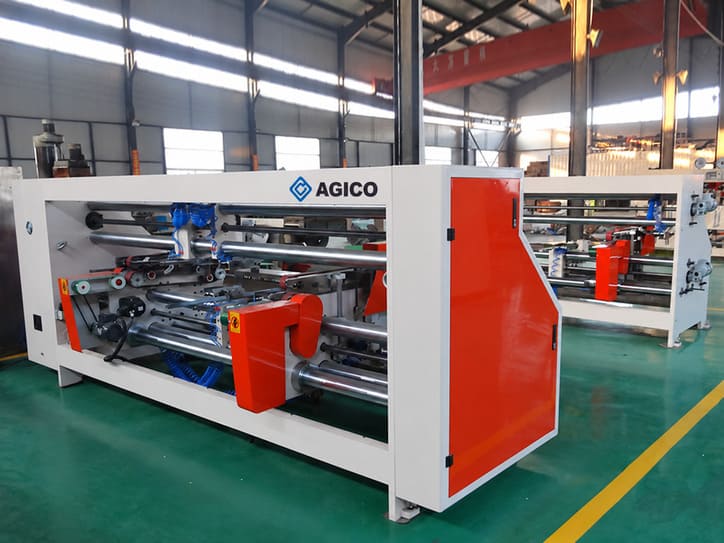

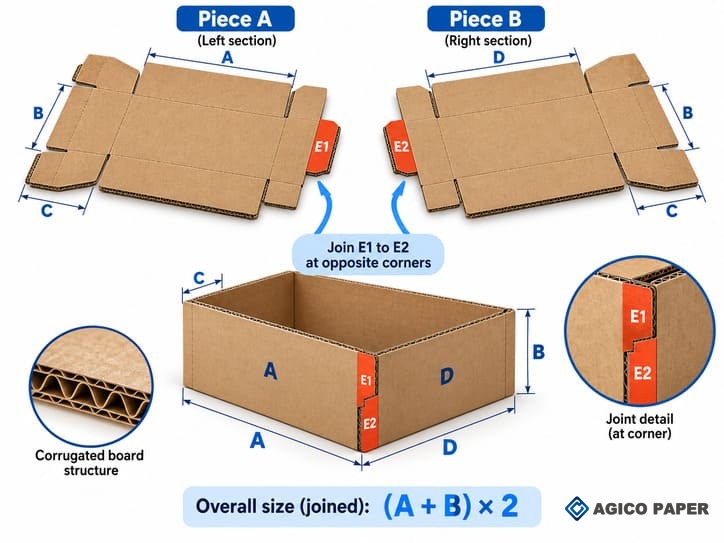

The semi-automatic twin head stitcher uses two stitching heads and is driven by four servo motors. It is suitable for stitching joints on two-piece corrugated boxes, irregular corrugated cartons, and large corrugated cartons.
Features: Twin Head Stitching, Four Servo Drives

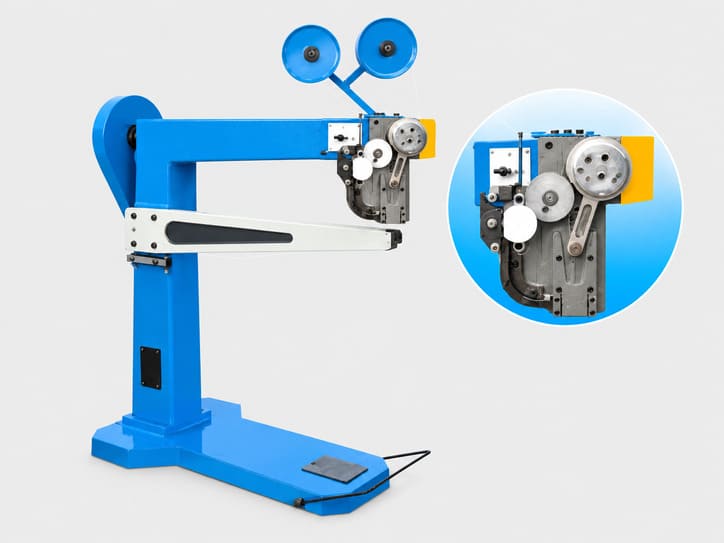

The pedal-operated stitcher uses a foot pedal to control the stitching. The carton is manually fed into the stitching position. It is simple to operate and suitable for standard corrugated boxes.
Features: Pedal Operation, Manual Feeding
Both corrugated box folder gluer machines and corrugated stitching machines are common methods for box forming. But how do you know which one to choose?
| Requirement | Stitching Machine | Folder Gluer |
|---|---|---|
| Joint Durability | Extreme hold, high tear resistance | Moderate hold |
| Target Applications | Heavy machinery, appliances, furniture | Light/medium goods, food, cosmetics |
| Board Thickness | 3-ply, 5-ply, heavy 7-ply | Thin 3-ply, light 5-ply |
| Finished Appearance | Visible metal staples | Seamless glued joint |
| Consumable Cost | Low (stitching wire) | Higher (glues) |
| Humidity Resistance | Unaffected by cold/humidity | Glue may loosen in moisture |

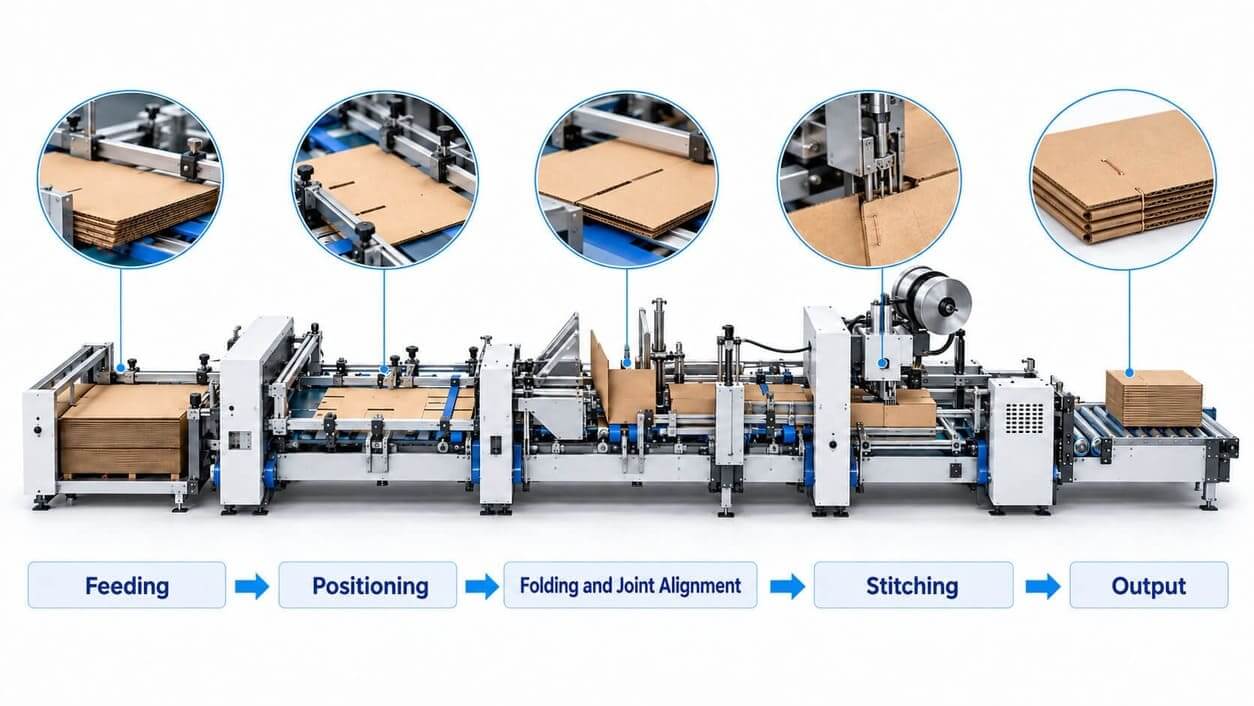

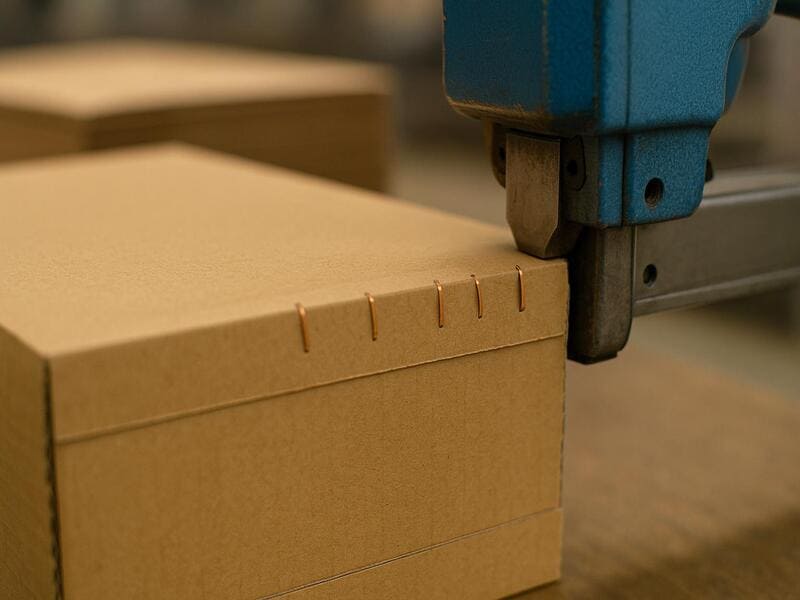

As an important machine in corrugated box making, the carton stitching machine works in a way similar to a stapler. It uses a tooth-shaped anvil to support the carton blank and stitch the overlapping flaps together to close the box.
The corrugated box blank enters the stitching machine through the feeding system. It is then sent to the stitching area. Different models use different feeding methods.
During feeding, the feeding system guides and positions the box blank. It keeps it in the correct folding position during conveying. Then the overlapping flap enters the stitching area accurately.
The carton blank is folded along the creasing lines so that the joint flaps overlap correctly. Depending on the machine model, the carton blank is manually or mechanically guided into the stitching position.

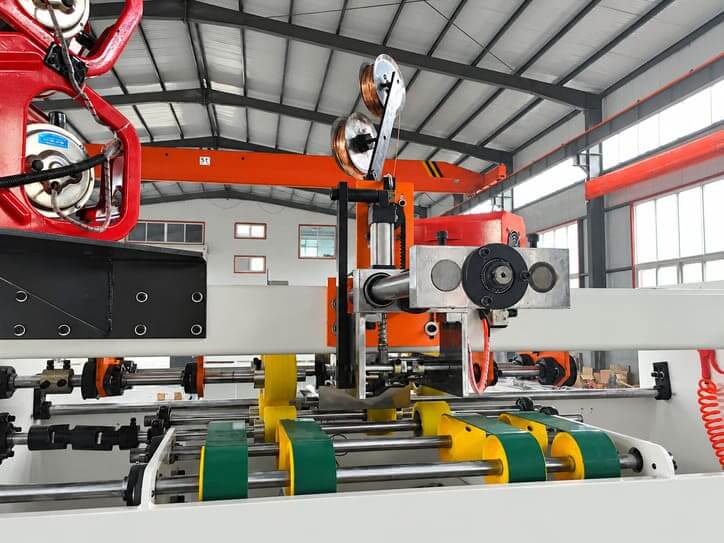

The overlapping flap enters the stitching position. The stitching head drives the stitching wire into the overlapping part. The stitching wire fixes the overlapping parts together. The box is then formed.
Stable Feeding

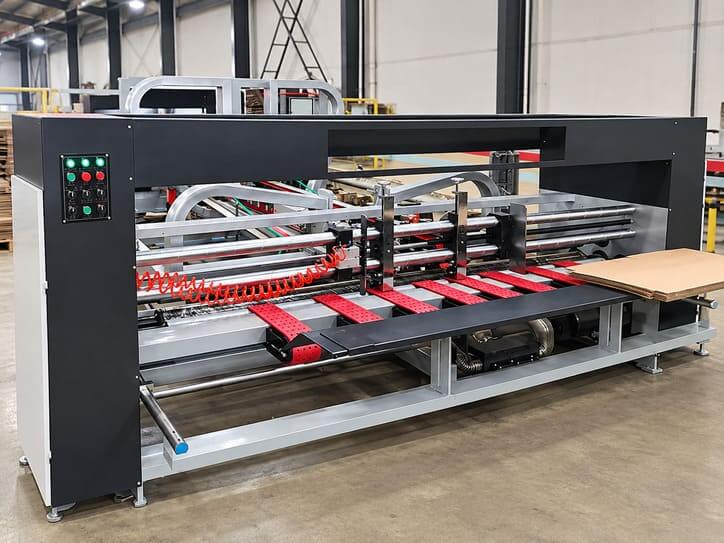

Different AGICO PAPER carton box stitching machines use different feeding systems. The automatic model uses vacuum feeding with belt assistance. Some semi-automatic models use servo-controlled feeding. These help keep the carton blank stable and feed it into the stitching position accurately.
Flexible Stitching
We also support different stitching methods. The stitch distance and stitch count can be adjusted according to the model. You can choose a suitable stitching method and stitch distance for different carton sizes and structures.

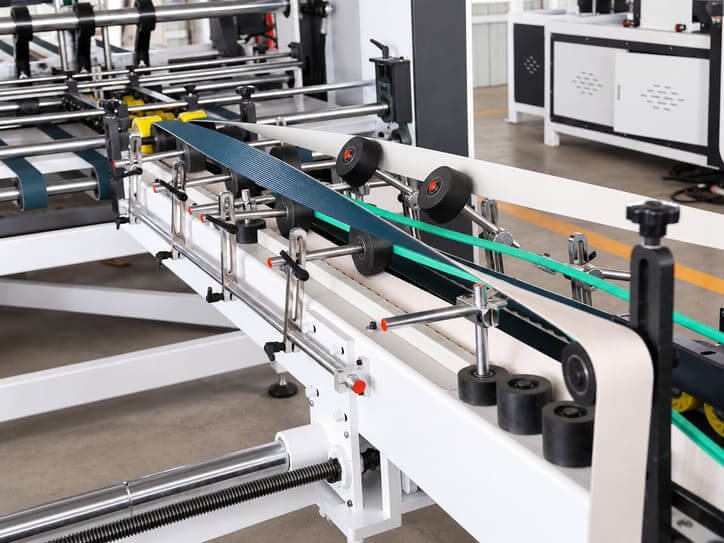

Smart Control & Fast Changeover
AGICO stitching machines use a PLC touchscreen system for easy parameter settings. You can store common order data and complete carton size adjustments in 1–3 minutes.
Counting & Stacking
AGICO’s automatic box stitching machine supports product counting and stacking. It helps reduce manual sorting work, and it is more suitable for continuous production.
| Specification | Details |
|---|---|
| Max. Sheet Size | 2500 mm |
| Min. Sheet Size | 750 mm |
| Max. Carton Length | 800 mm |
| Min. Carton Length | 220 mm |
| Max. Carton Width | 780 mm |
| Min. Carton Width | 150 mm |
| Max. Sheet Height | 1200 mm |
| Min. Sheet Height | 300 mm |
| Max. Width of Tongue Lock | 40 mm |
| Stitch Pitch | 30–120 mm |
| Number of Stitches | 0–99 |
| Stitching Speed | 600 stitches/min |

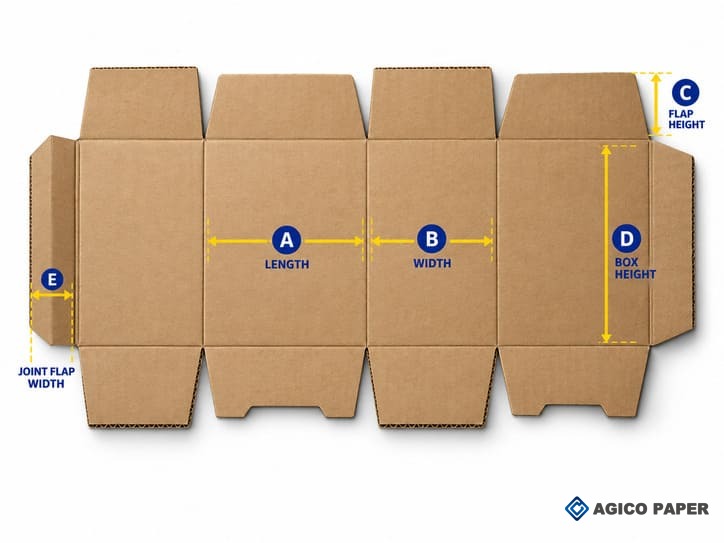

| Specification | Details |
|---|---|
| Max. (A+B) × 2 | 3800 mm |
| Min. (A+B) × 2 | 740 mm |
| Max. (C+D+C) | 3000 mm |
| Min. (C+D+C) | 250 mm |
| Min. C | 50 mm |
| Max. C | 560 mm |
| Max. B | 850 mm |
| Min. B | 120 mm |
| Max. A | 1140 mm |
| Min. A | 250 mm |
| Max. D | 2000 mm |
| Min. D | 150 mm |
| Max. E | 40 mm |
| Feed Table Height | 900 mm |
| Machine Width | 2850 mm |
| Weight | 2 t |
| Stitching Speed | 600 stitches/min |
| No. of Stitches | 1–99 |
| Specification | SDJ-2000 | SDJ-2400 | SDJ-3000 |
|---|---|---|---|
| Max. (A+B) × 2 | 4000 mm | 4800 mm | 6000 mm |
| Min. (A+B) × 2 | 1060 mm | 1060 mm | 1060 mm |
| Max. Length | 2850 mm | 2850 mm | 2850 mm |
| Min. Length | 350 mm | 350 mm | 350 mm |
| Max. Width | 1000 mm | 1200 mm | 1500 mm |
| Min. Width | 180 mm | 180 mm | 180 mm |
| Min. Height (C+D+C) | 400 mm | 400 mm | 400 mm |
| Stitch Pitch | 30–120 mm | 30–120 mm | 30–120 mm |
| Stitch Quantity | 1–99 | 1–99 | 1–99 |
| Stitching Speed | 500 stitches/min | 500 stitches/min | 500 stitches/min |
| Specification | 1200 | 1400 | 1600 | 1800 |
|---|---|---|---|---|
| Stapling Speed | 250 staples/min | 250 staples/min | 250 staples/min | 250 staples/min |
| Cardboard Thickness | 3/5 ply | 3/5 ply | 3/5 ply | 3/5 ply |
| Arm Length | 1200 mm | 1400 mm | 1600 mm | 1800 mm |
| Dimension | 1700 × 700 × 1820 mm | 1900 × 700 × 1820 mm | 2100 × 700 × 1820 mm | 2300 × 700 × 1820 mm |
| Weight | 600 kg | 800 kg | 800 kg | 1000 kg |
Need help choosing a stitcher?
Share your box dimensions, board ply and production requirements.
AGICO corrugated box stitching machines are suitable for different corrugated boxes. Most models are suitable for 3-ply and 5-ply board. Some models can also be customized for 7-ply board.
The corrugated box stitching machine, also known as a carton stitcher, is specialized equipment used to join the flaps or edges of a corrugated carton blank using metal stitching wire.
AGICO offers an auto carton stitching machine, the semi-automatic single-head stitcher, semi-automatic twin-head stitcher, and pedal-operated stitcher. Different models fit different production volumes, carton specifications, and automation requirements.
It mainly depends on your needs. For large-scale production, you can choose the auto box stitching machine. For semi-automatic models, they are suitable for small- to medium-batch production; Pedal-operated stitchers are suitable for simple manual stitching of standard corrugated cartons.
Yes. Some models can be customized for 7-ply corrugated board and different carton size requirements. Stitch pitch, stitch count, and stitching patterns can also be adjusted depending on the machine model.
